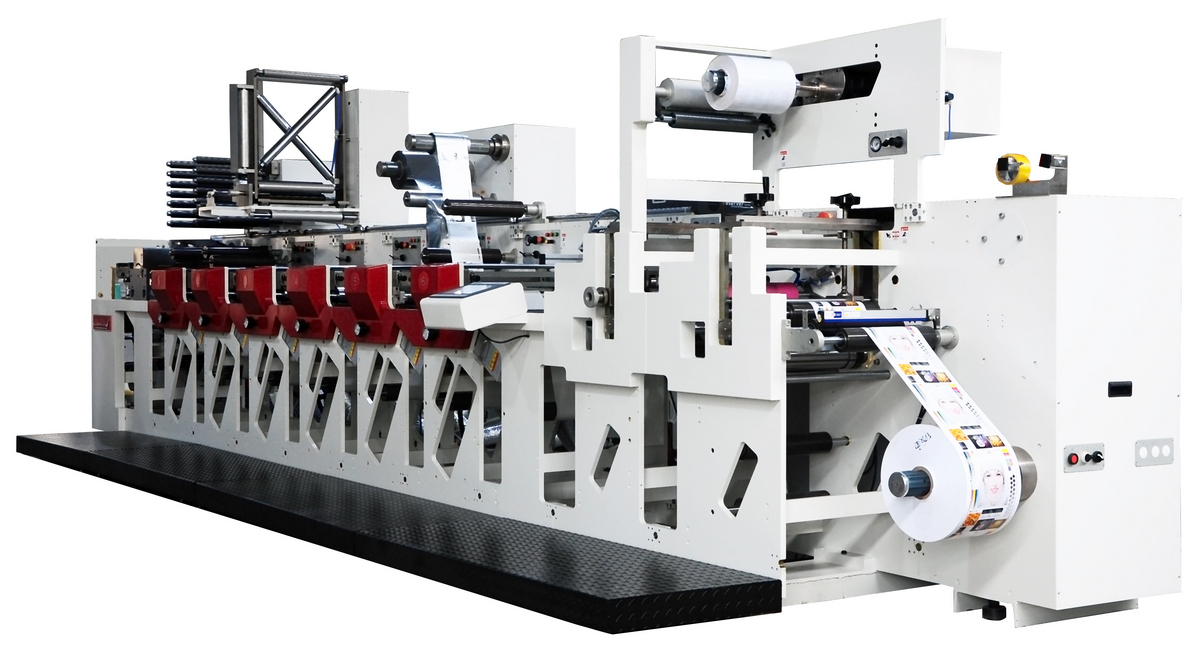

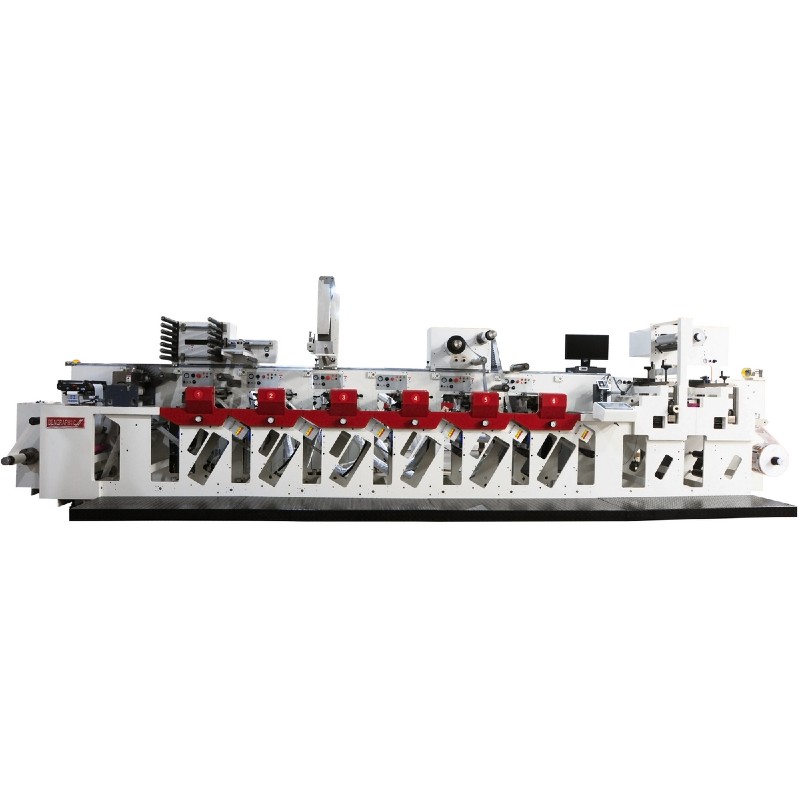

| Details of BenGraphic F3 Series | |
|---|---|
| Manufacturer |
|
| Highlights |
- Servo-driven - Short web path - Quick changeover without tooling - Quick set-up - Hot air or UV drying - UV rotary screen - Cold foil - Movable rail for other option - Turn bar, Delam/relam, Diecutting - Sheeting & laminating etc - Chiller plate is basic option - Lock ink cassette by air cylinder, Separted Anilox with ink pan |
| Speed | 150m/min |
| Web width | 330/420mm |
| Repeat Length | 229-502mm |
| Max unwind diameter | 760 and/or 1000mm |
| Max rewind diameter | 760 and/or 1000mm |
| Max units | 12 units |
| UV curing power | 400 w/inch |

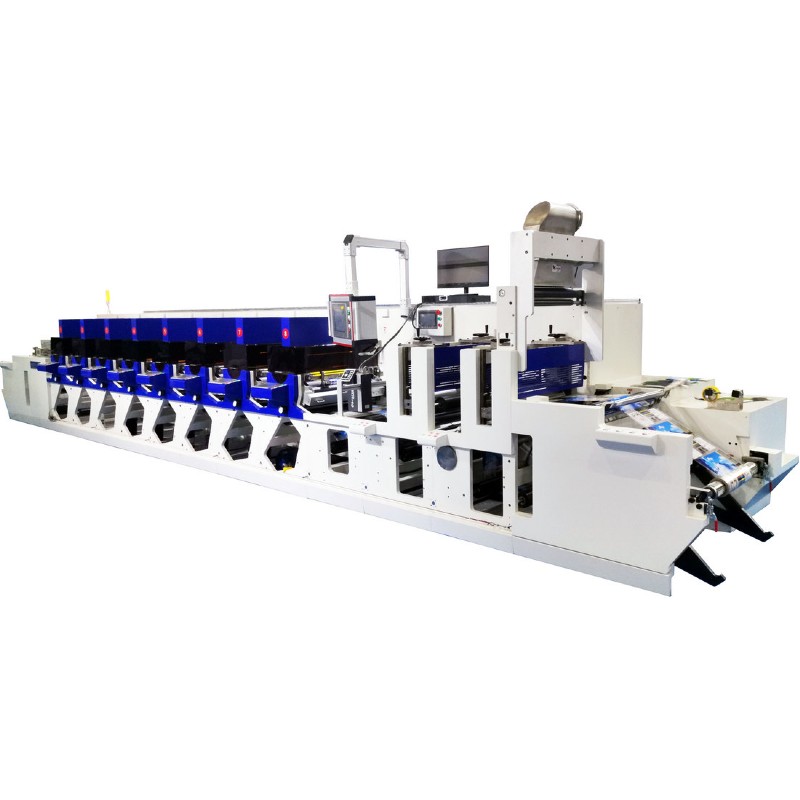

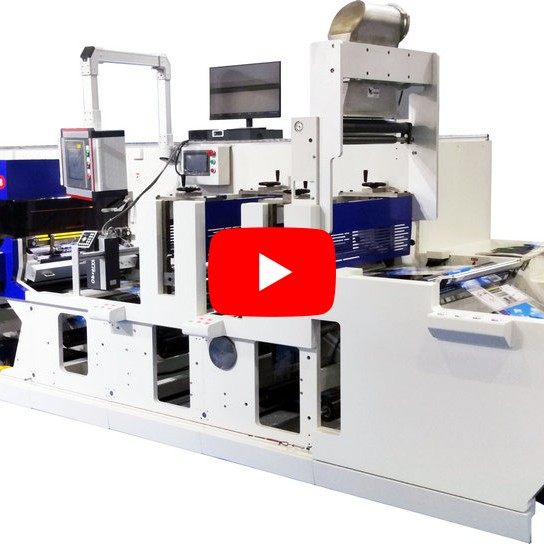

| Details of BenGraphic F8 Series | |
|---|---|
| Manufacturer |
|
| Features |
- Double Servo-driven, remote check/upgrade - Short web path - Quick changeover without tooling - Quick set-up, Pre-registration & Pre-impression by servo - Pre-registration & auto-registration - Sleeve plate cylinder - Hot air or UV drying - Rail system for potable cold foil / screen etc - Record the data of different material - Turn bar, Delam/relam, Diecutting - Sheeting & laminating etc - Chilled Drum is option,Air cylinder locked ink tray, Separated Anilox with ink pan - This press is used for PVC/PP/PET film, AL-foil, Paper/Fimp PS label,60-400g paper |
| Speed | 150m/min |
| Web width | 330/430/650mm |
| Repeat Length | 229-650mm |
| Max unwind diameter | 1000mm |
| Max rewind diameter | 1000mm |
| Max units | 12 units |
| UV curing power | 400 w/inch |
