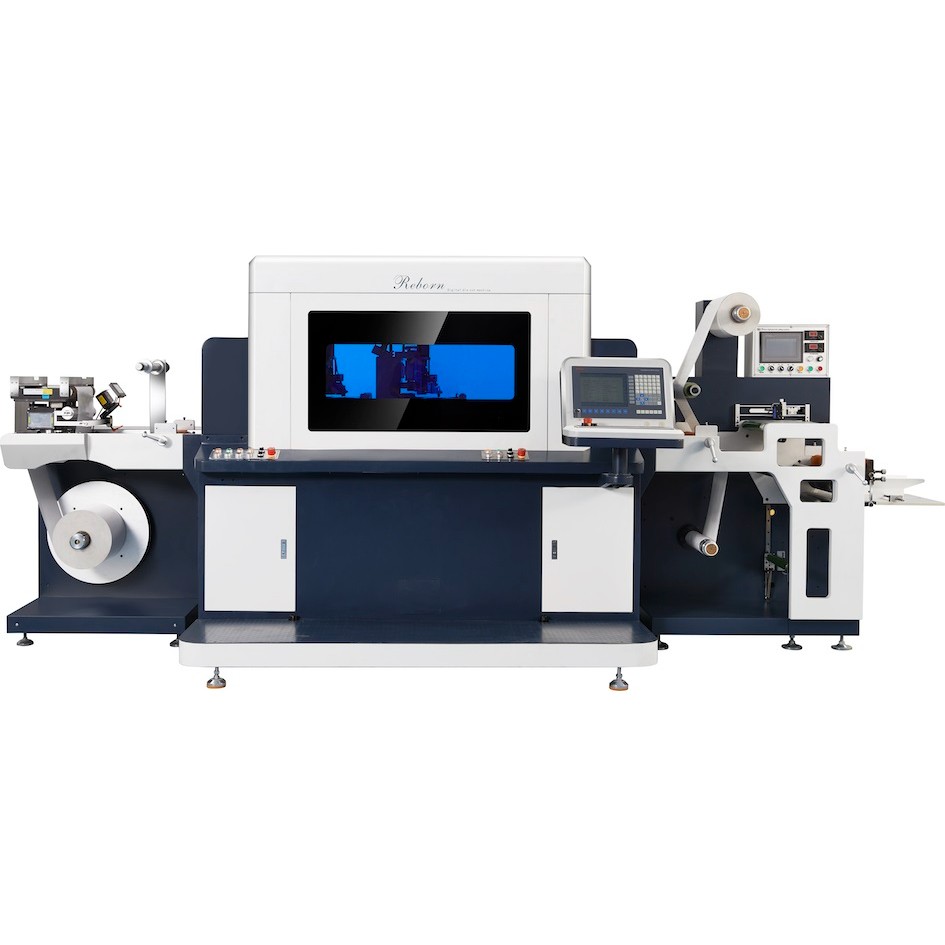

| Details of REBORN RBJ-350E-DB | |
|---|---|
| Manufacturer |
|
| Features |
1. Equipped with Reborn System , more stable , fast and high accurate 2. Maximum label material thickness 0.35mm, no limitation for liner 3. Ace for short and medium runs 4. Ay shape and any material availability. Cut what you want, when you want 5. Flexibility to respond quickly to market changes 6. Less Waste, Save Material and energy cost 7. Remove diagnosis, Minimum the breakdown |
| Model | RBJ-350E-DB (Export Model) |
| Country Of Origin | China |
| Applicable File Format | AI |
| File Transfer | Wifi |
| Max. Paper Width | 350mm |
| Max. Unwind Diameter | Dia.650mm |
| Max. Repeat Length | 980mm (Single Set) |
| Min. Label Length | 5mm |
| Cutting Precision | 0.05mm |
| Digital Blade | Six Blades in Two Sets ( 2 Unit x 3 Blades) |
| Max. Line Cut Speed | 145m/min (Single Blade) |
| Min/Max Gap of Blade | 76mm / 165mm |
| Max. Repeat of Blade | 280mm * 3 (registered length of 1st and 2nd set) |
| Input Voltage | 380V , Three Phase, 40Amp |
| Main Power | 15.8KW |
| Weight | About 2000kg |
| Machine Dimension | 4500 x 1850 x 1950mm |
| Certificate | CE |
| Details of REBORN RBJ-350E | |
|---|---|
| Manufacturer |
|
| Model | RBJ-350E (Export Model) |
| Country Of Origin | China |
| Applicable File Format | AI |
| File Transfer | Wifi |
| Max. Paper Width | 350mm |
| Max. Unwind Diameter | Dia.400mm |
| Max. Repeat Length | 450mm |
| Min. Label Length | 5mm |
| Cutting Precision | 0.05mm |
| Digital Blade | Three Blades in One Sets (1 Unit x 3 Blades) |
| Max. Line Cut Speed | 145m/min (Single Blade) |
| Min/Max Gap of Blade | 65mm / 260mm |
| Input Voltage | 380V , Three Phase, 26Amp |
| Main Power | 12.3KW |
| Weight | About 2000kg |
| Machine Dimension | 2350 x 13000 x 1600mm |
| Certificate | CE |

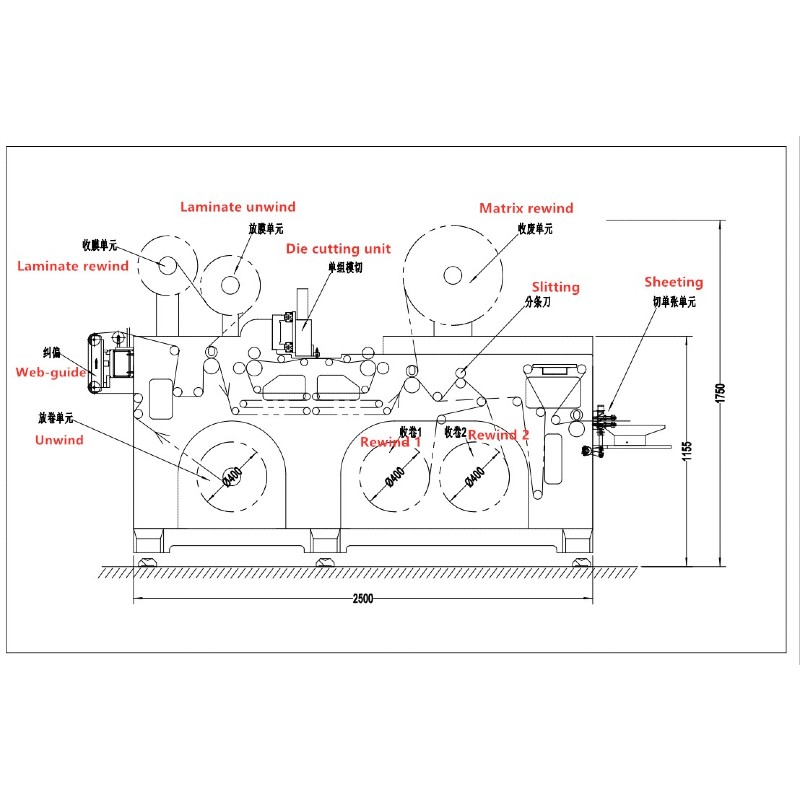

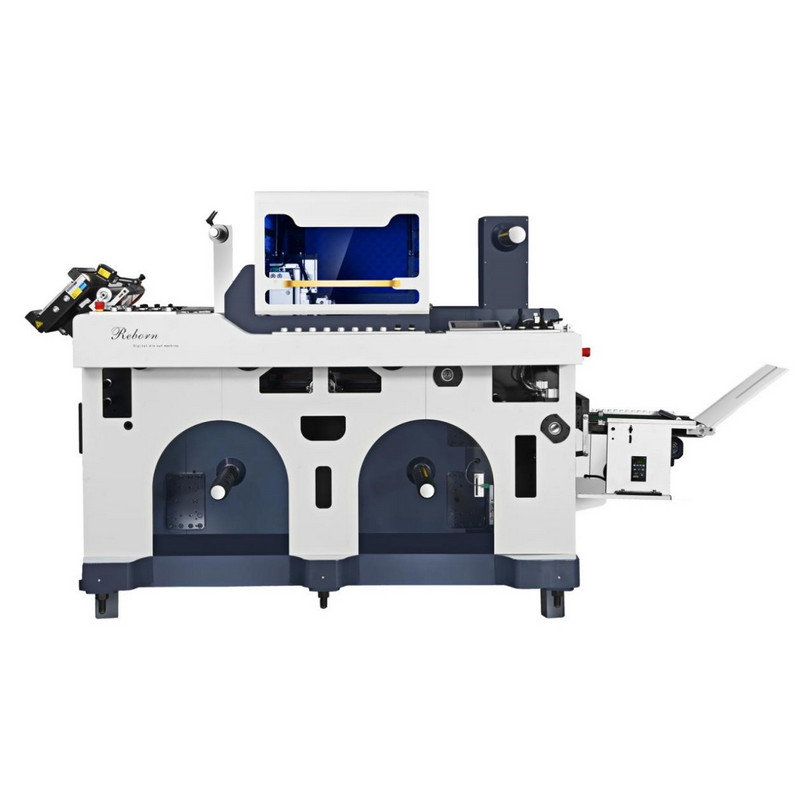

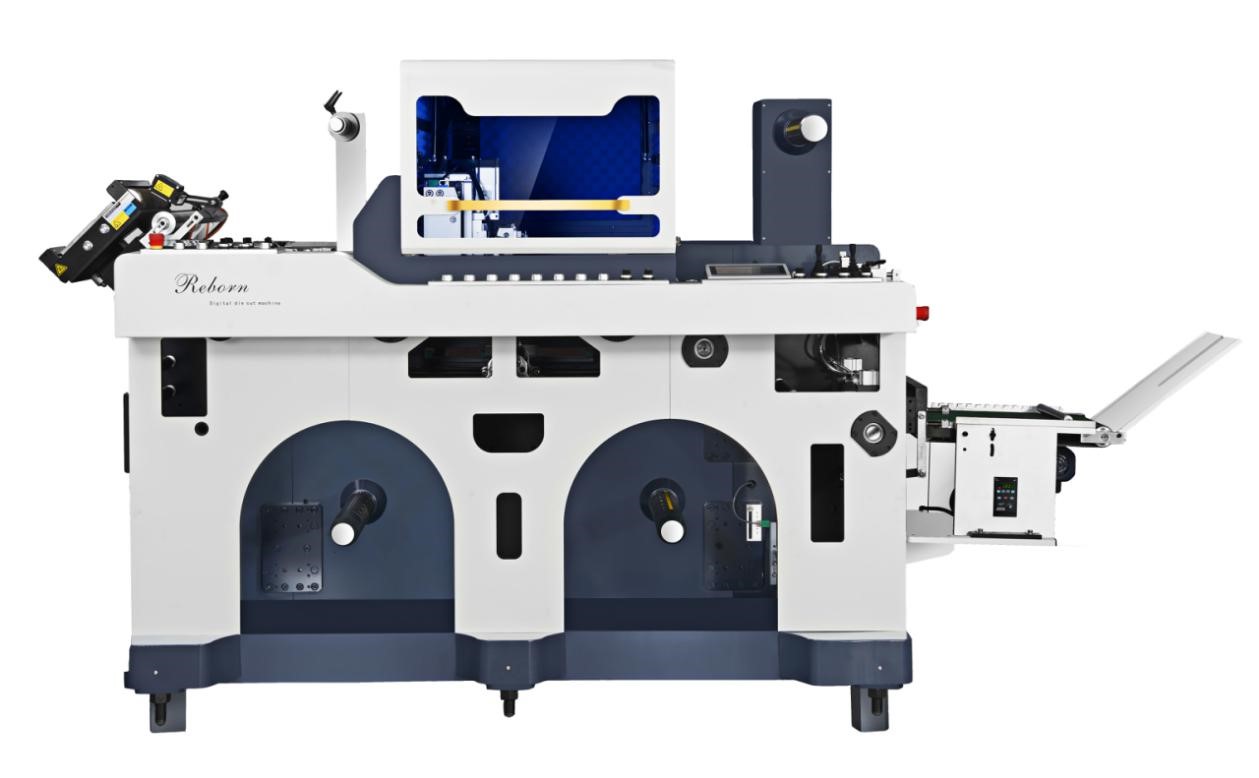

| Details of REBORN RBJ-350A | |
|---|---|
| Manufacturer |
|
| Configuration |

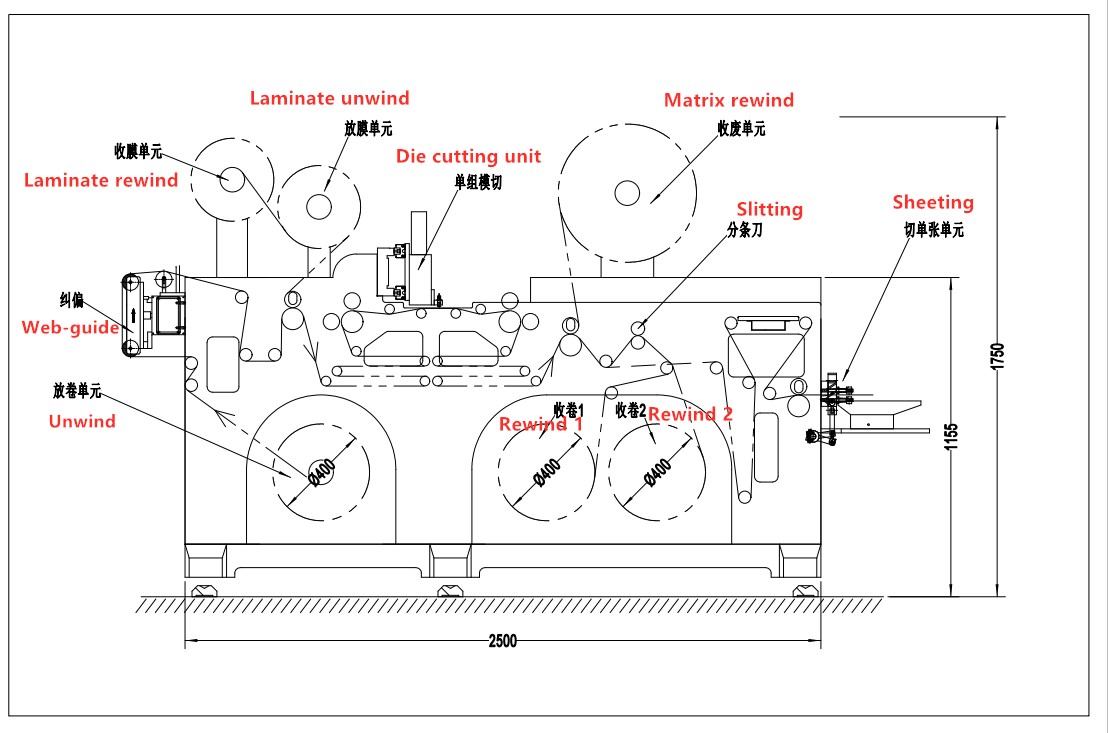

Unwinder& Master Rewinder - 1 set Web guide - 1 set Lamination device - 1 set Plotter cutting unit - 1 set Quadratic tracking-mark sensor - 1 set Matrix rewinder with paperless-stop-device) - 1 set Human machine interface(HMI) - 1 set Sheeter - 1 set Chiller device - 1 set |
| Features |
1. Equipped with Reborn system, steady, fast and high accurate 2. Maximum label material thickness 0.35mm, no limitation for liner 3. Cut any rows at a time 4. Ace for short and medium runs 5. Any shape and any material availability. Cut what you want, when you want 6. Flexibility to respond quickly to market changes 7. Less waste, save material and energy cost 8. Remote diagnosis, minimum the breakdown |
| Model | RBJ-350A |
| Country Of Origin | China |
| Applicable File Format | AI |
| Feeding Straightness | All-in-one body with stable feeding straightness |
| Max web width | 350mm |
| Max. Unwind/Rewind Roll Diameter | 400mm |
| Max. Repeat Length | 450mm |
| Min. Label Length | 5mm |
| Cutting Precision | +-0.1mm |
| Digital Blade | 3 blades of 1 set |
| Max Cutting Area | 330*450mm |
| Min gap of 3 blades/max gap of 2 blades/max gap of 3 blades | 65mm/160mm/105mm |
| Voltage | 380V (A.B.C+N+PE) |
| Air Requirement | 0.6Mpa |
| Rated Current/Gross Power | 27A/12.5KW |
| Rated Current/Gross Power with Hot Foil | 59A/27KW |
| Weight | 2500KG |

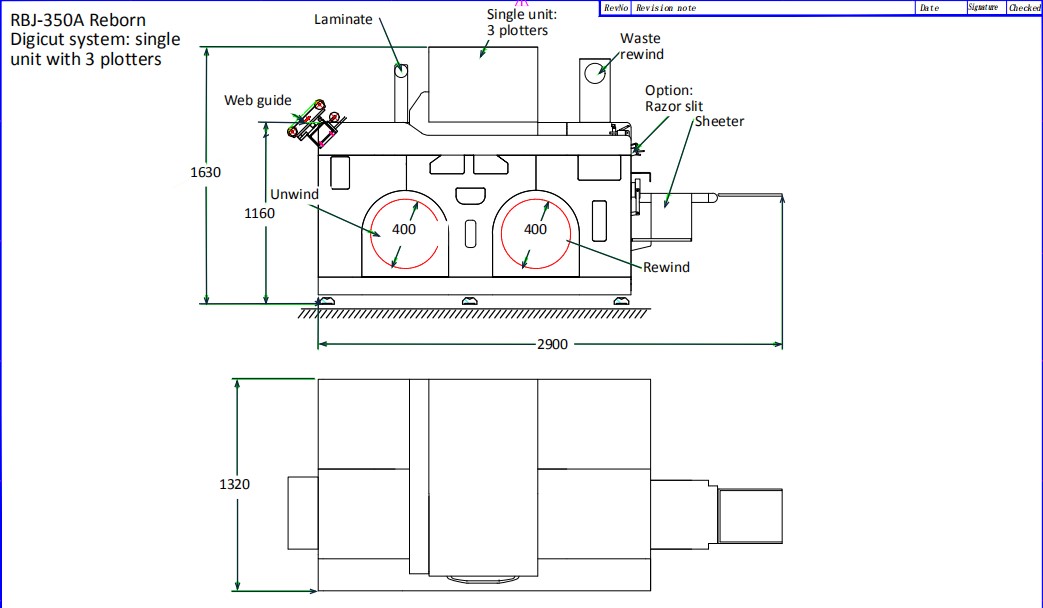

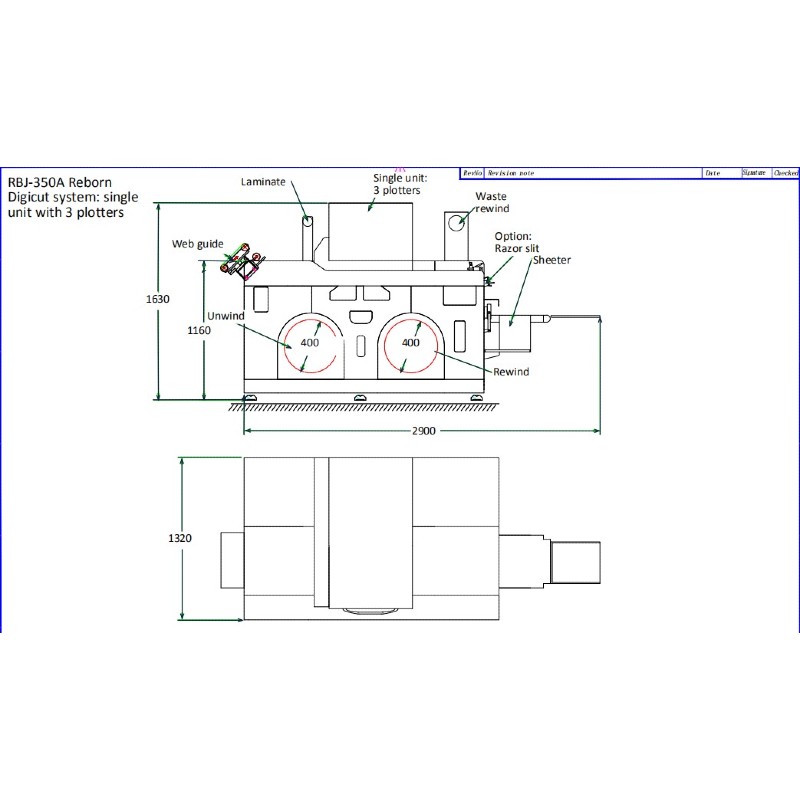

| Machine Dimension |
2500mm* 1320mm* 1630mm Sheeter: L: 550mm |
| Warranty | 1year (Excluding consumable parts) |

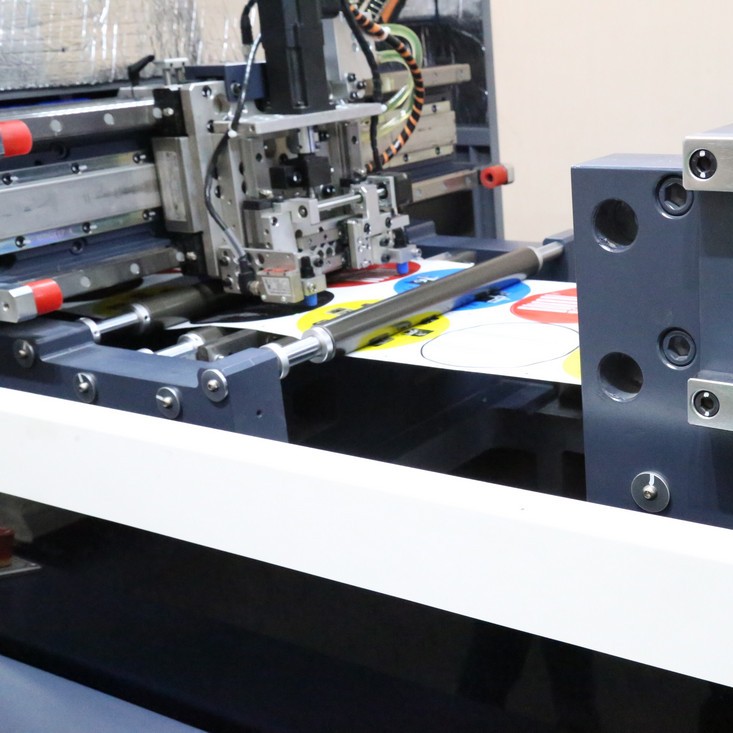

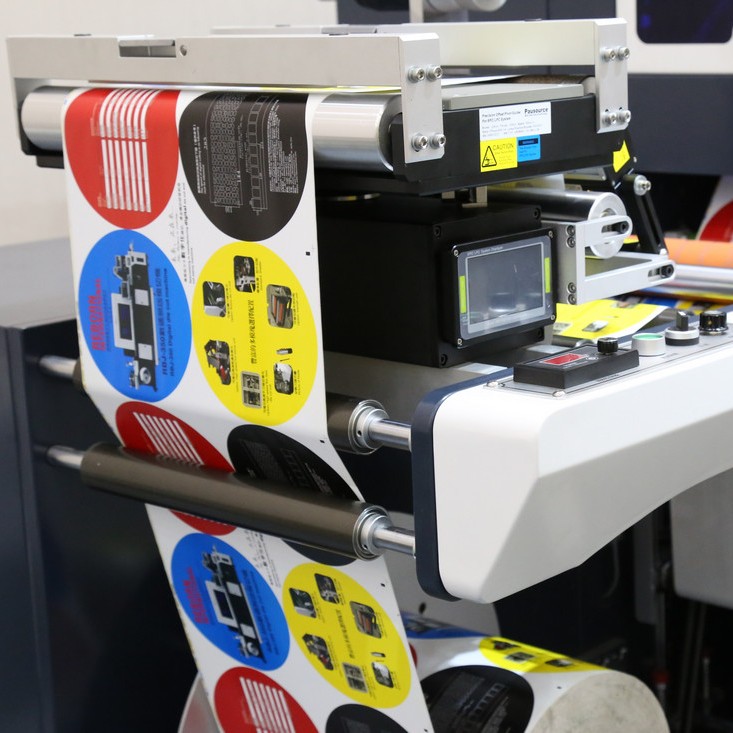

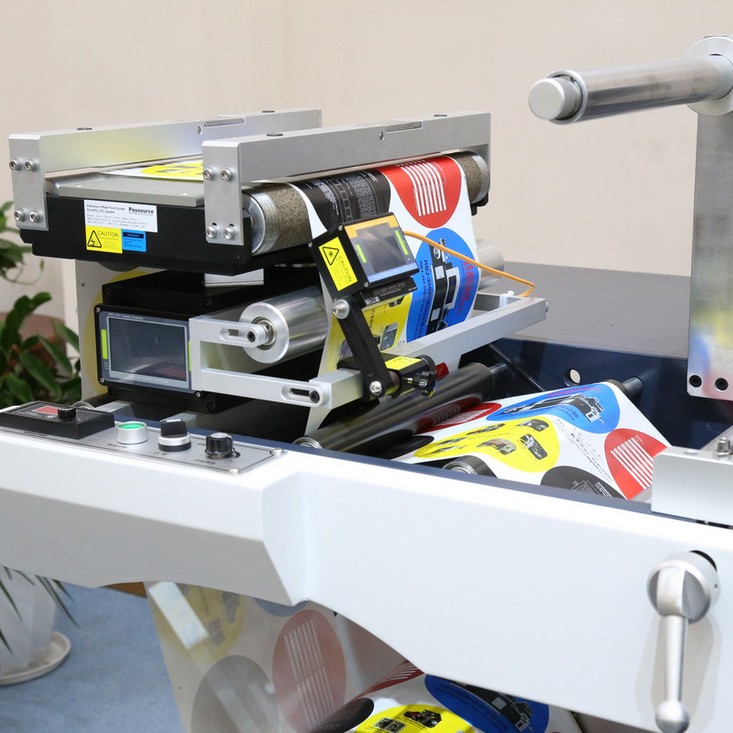

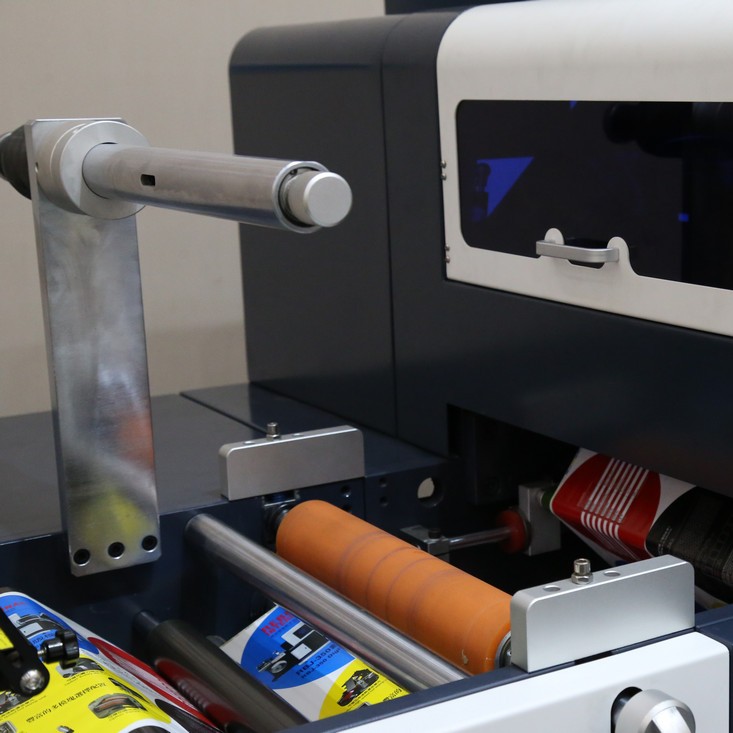

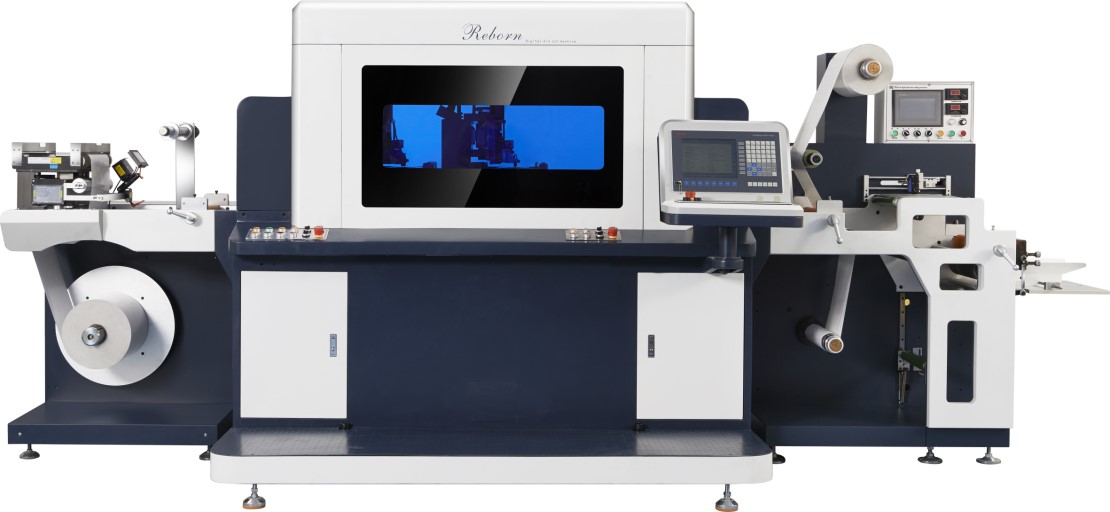

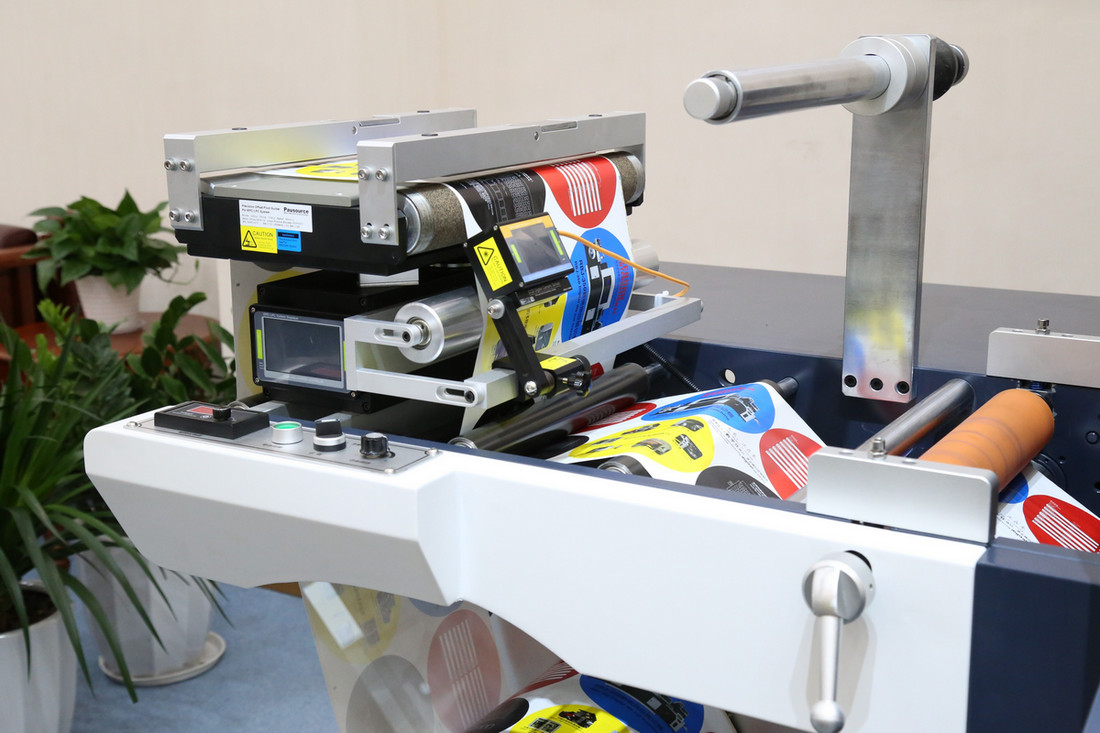

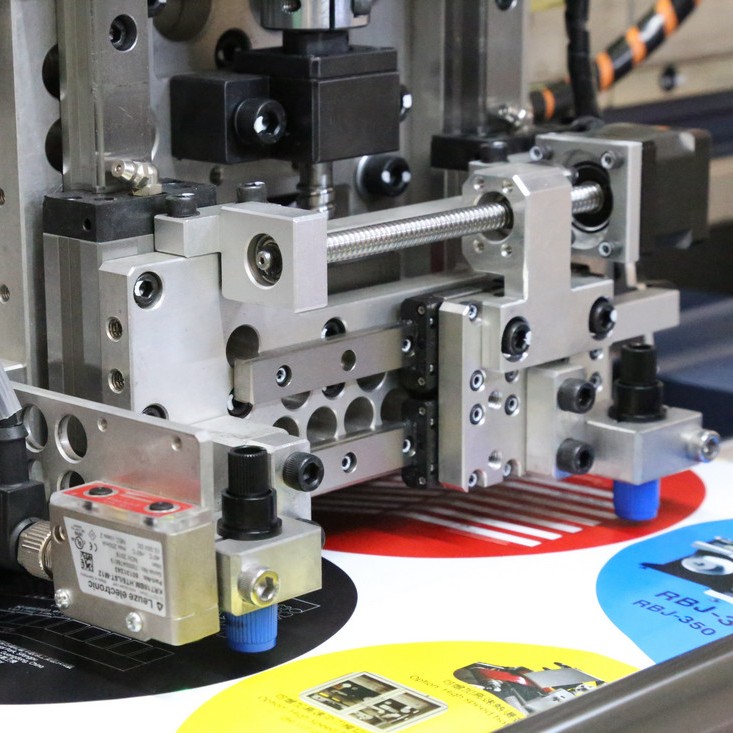

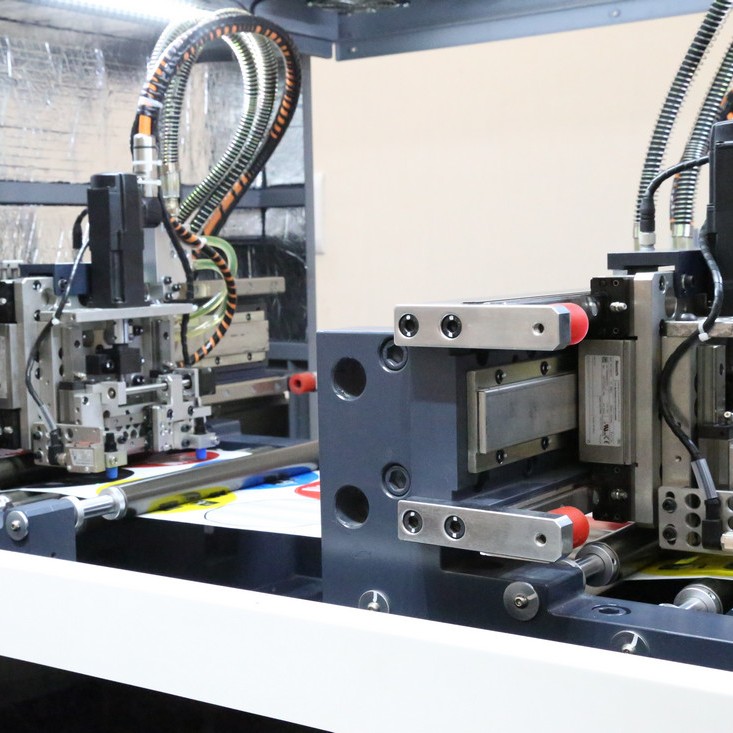

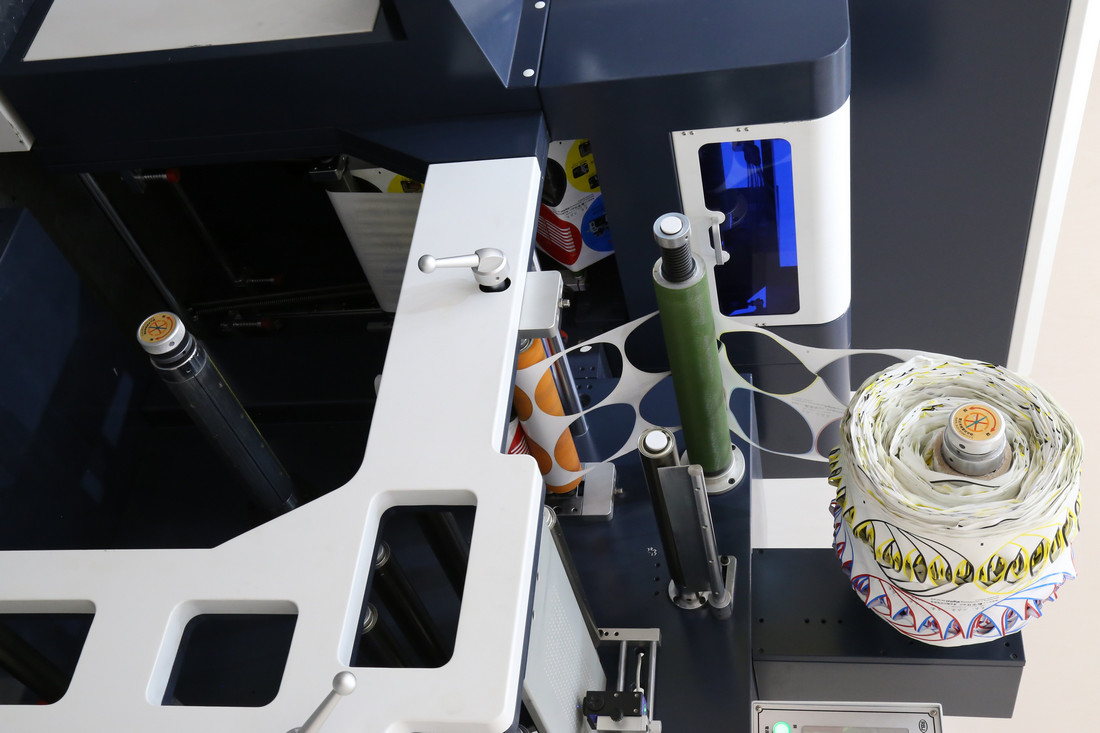

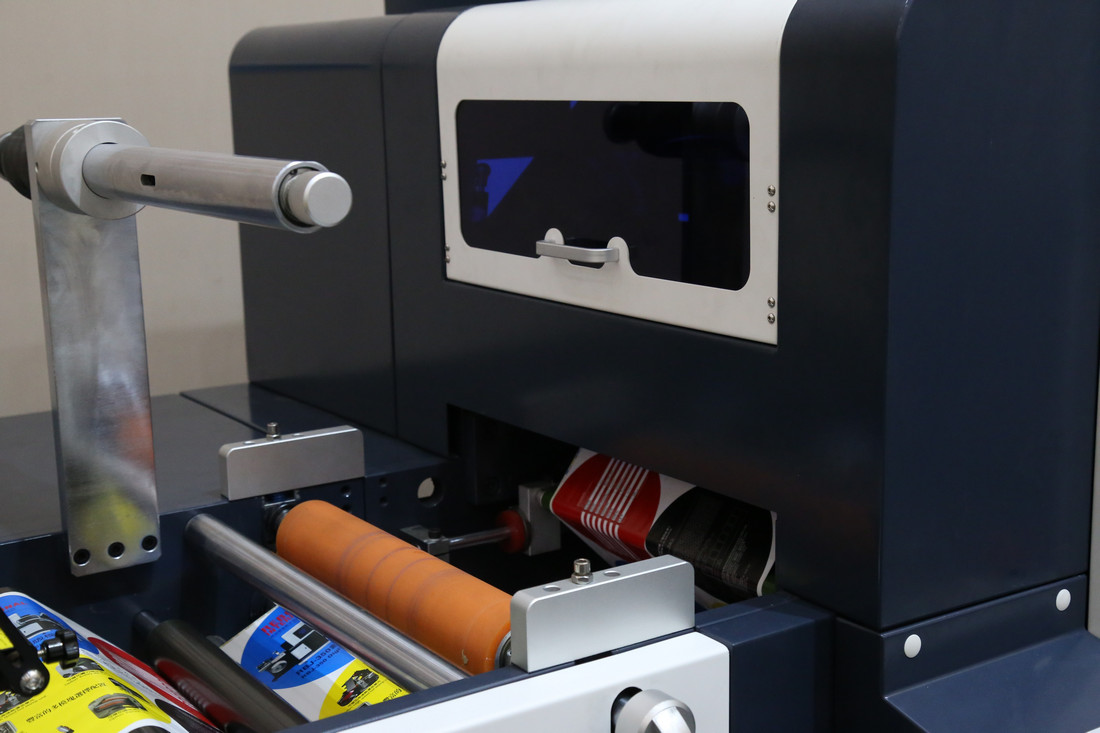

| Details of REBORN RBJ-350B | |
|---|---|
| Manufacturer |
|
| Configuration |

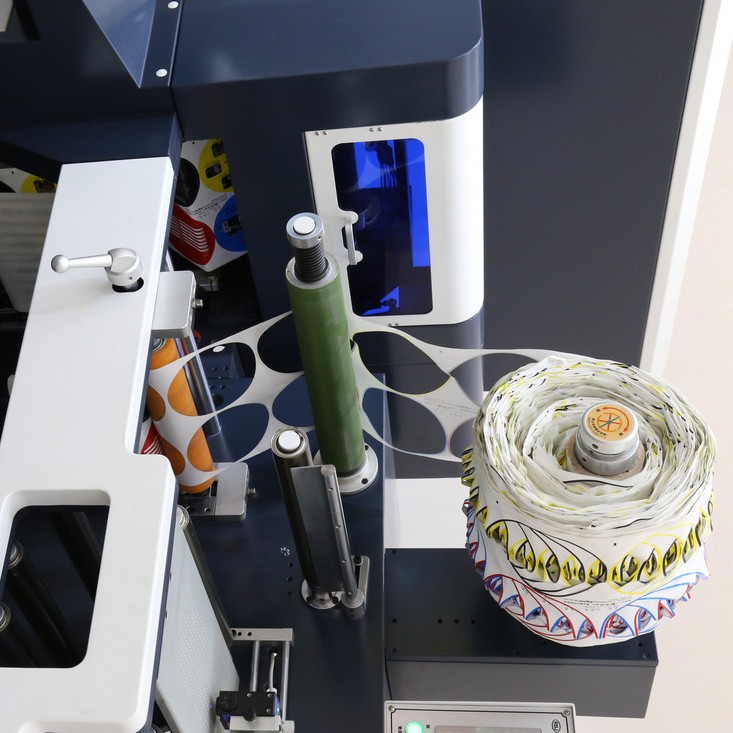

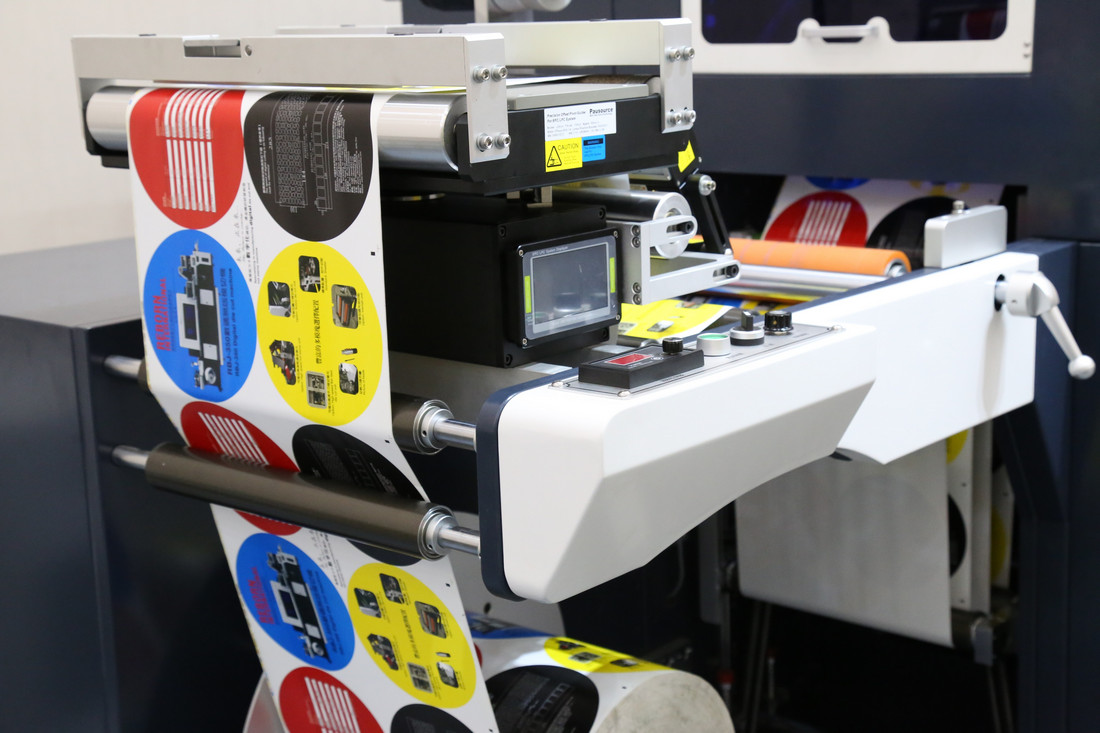

Unwinder& Master Rewinder - 1 set Web guide - 1 set Lamination device - 1 set Plotter cutting unit - 1 set Quadratic tracking-mark sensor - 2 set Matrix rewinder with paperless-stop-device) - 1 set Human machine interface(HMI) - 1 set Sheeter - 1 set Chiller device - 1 set |
| Features |
1. Equipped with Reborn system, steady, fast and high accurate 2. Maximum label material thickness 0.35mm, no limitation for liner 3. Ace for short and medium runs 4. Any shape and any material availability. Cut what you want, when you want 5. Flexibility to respond quickly to market changes 6. Less waste, save material and energy cost 7. Remote diagnosis, minimum the breakdown |
| Model | RBJ-350B |
| Country Of Origin | China |
| Applicable File Format | AI |
| File Transfer | Wifi / USB |
| Max web width | 350mm |
| Unwind/Rewind Roll Diameter | 650mm(can load 2000 meters material) |
| Max. Repeat Length | 980mm |
| Min. Label Length | 5mm |
| Cutting Precision | 0.05mm |

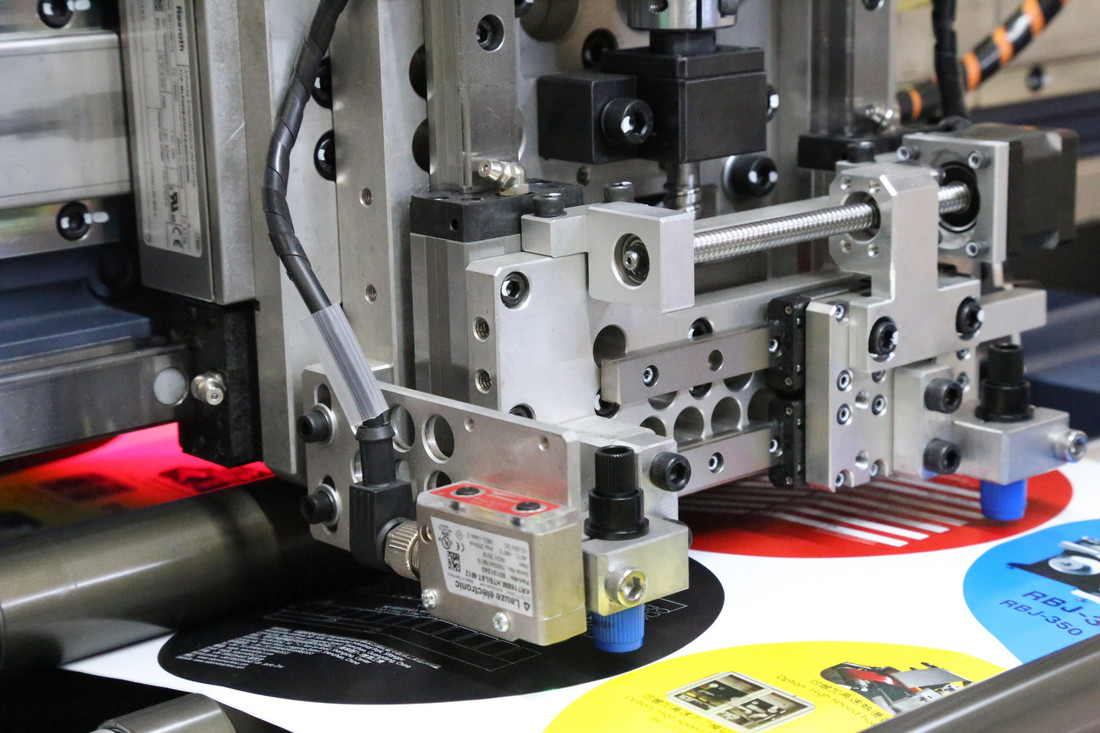

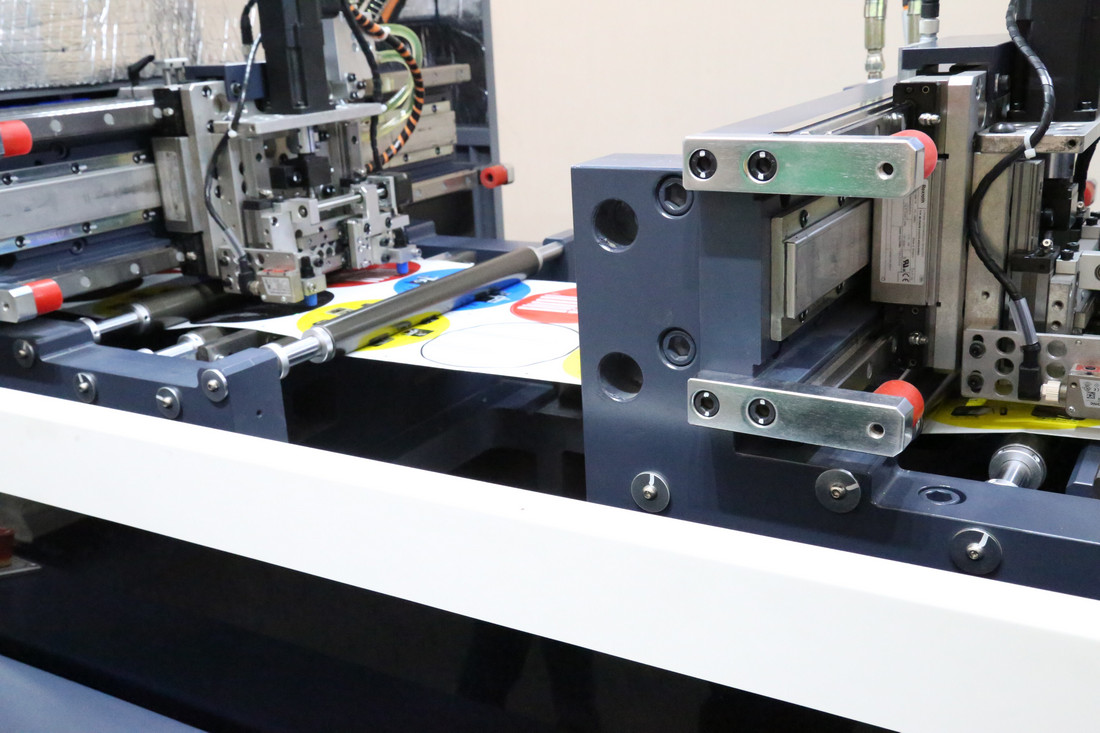

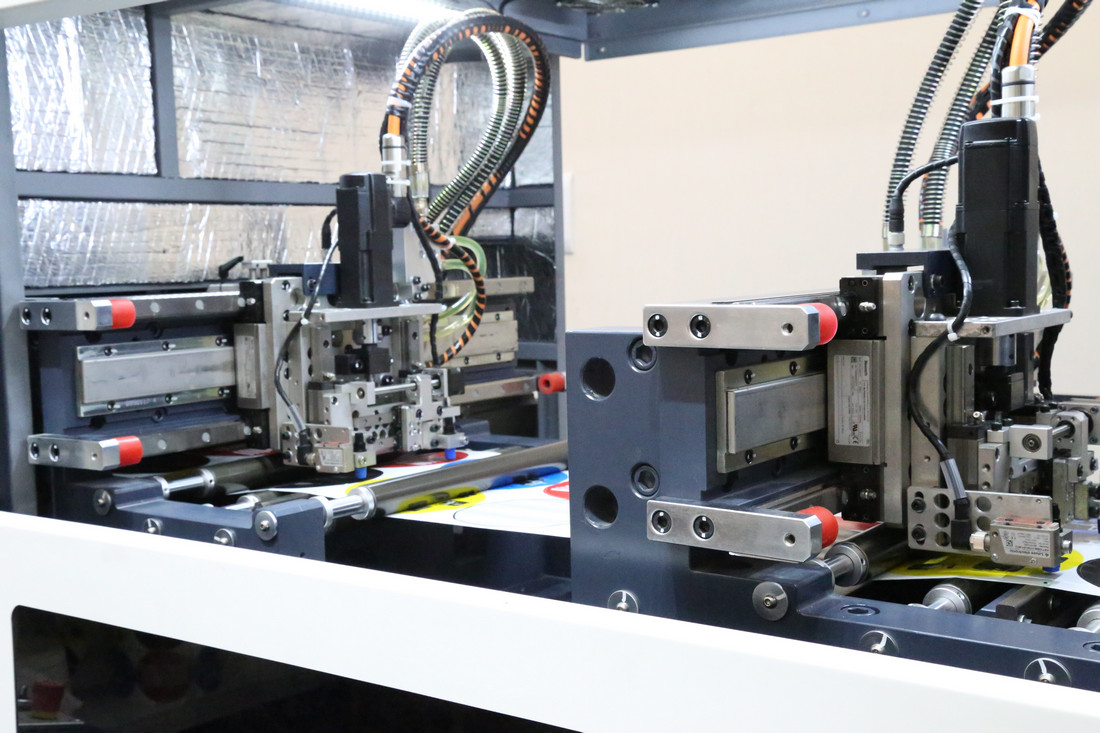

| Digital Blade | 6 blades in 2 sets |
| Max Cutting Area | 330*450mm |
| Min/Max gap of 6 blades | 65mm/260mm |
| Max registered repeated length of 1st and 2nd set | 280mm * 3 |
| Voltage / Current | 380V/40A, (A.B.C+N+PE) |
| Gross Power | 15.8KW |
| Air Supply | >0.6Mpa |
| Rated Current/Gross Power | 27A/12.5KW |
| Weight | 4500KG |
| Machine Dimension | (L)4500mm*(W)1850mm*(H)1950mm |
| Certificate | CE |

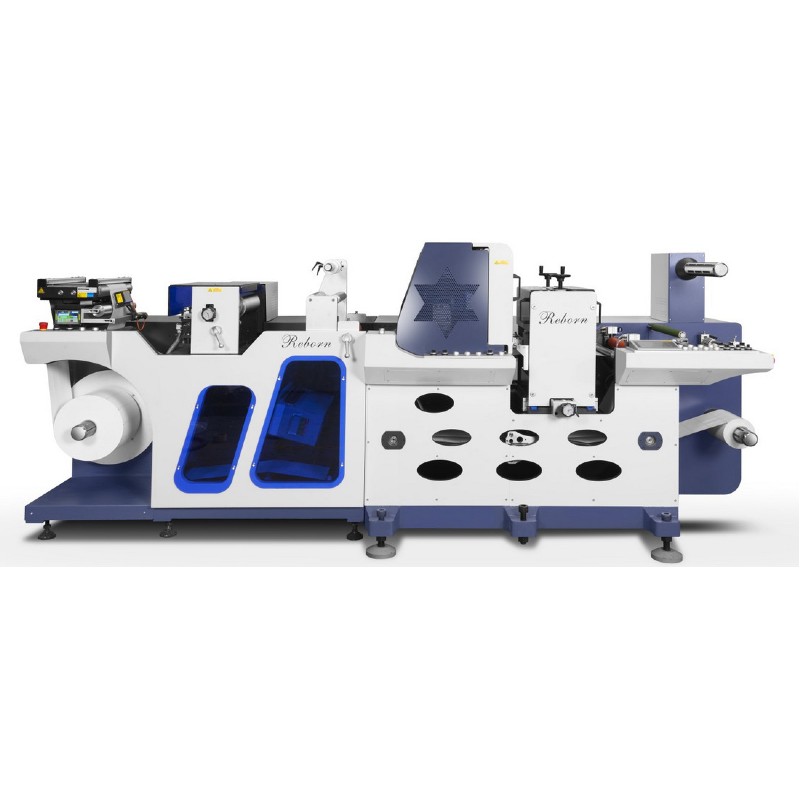

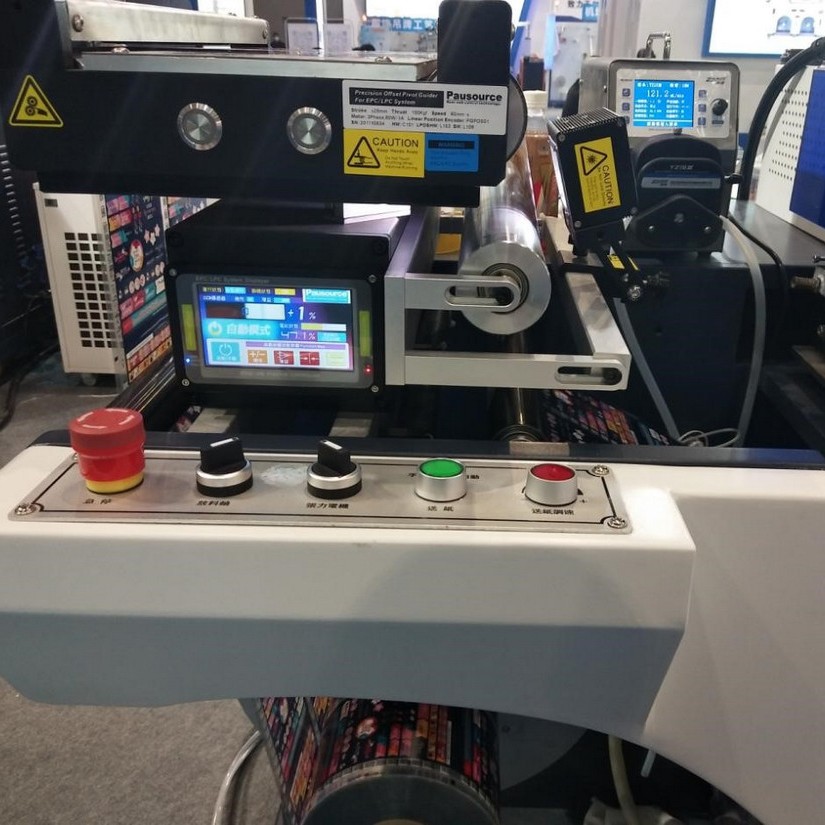

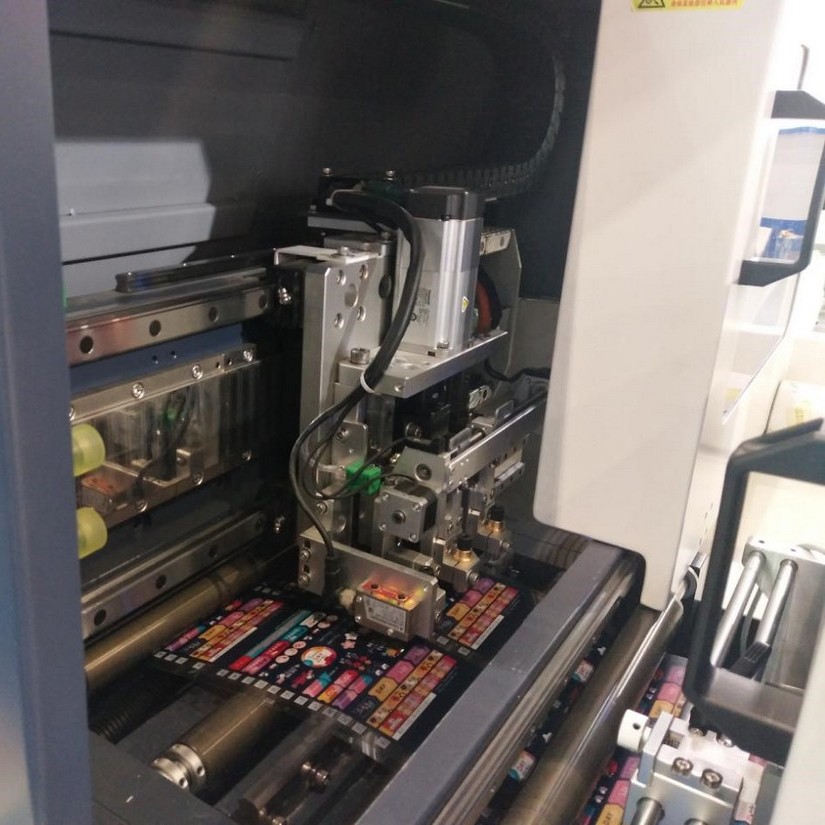

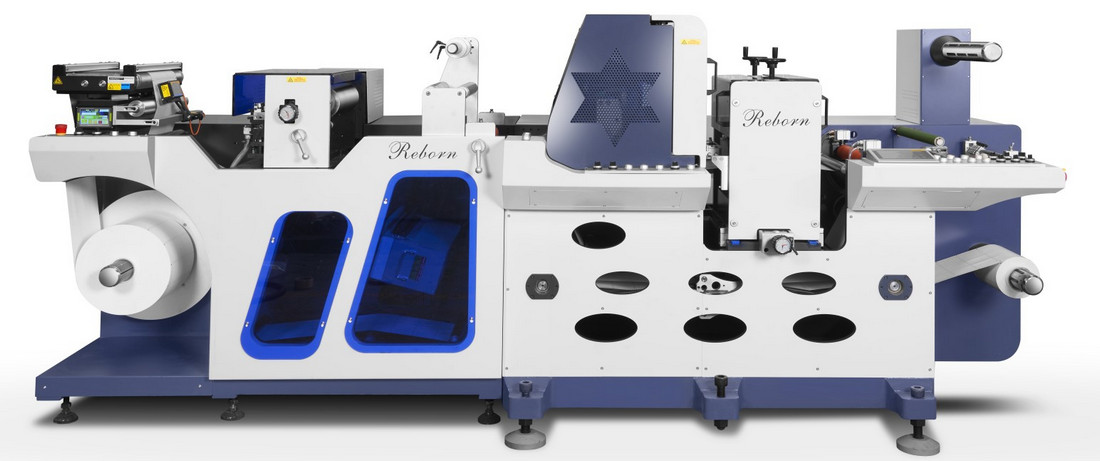

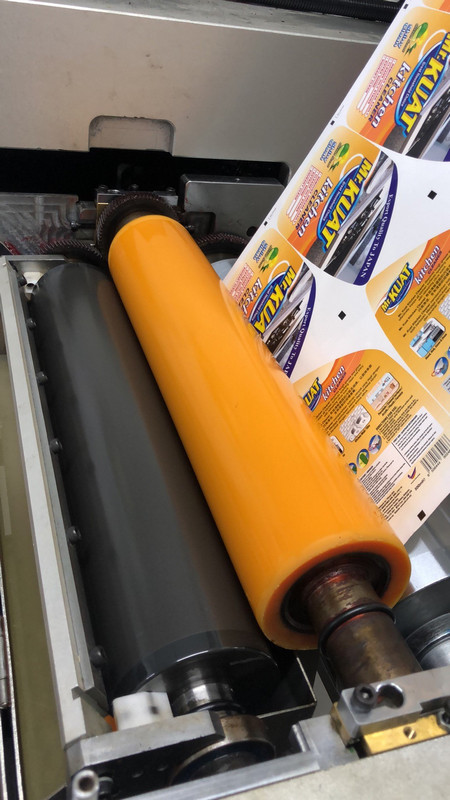

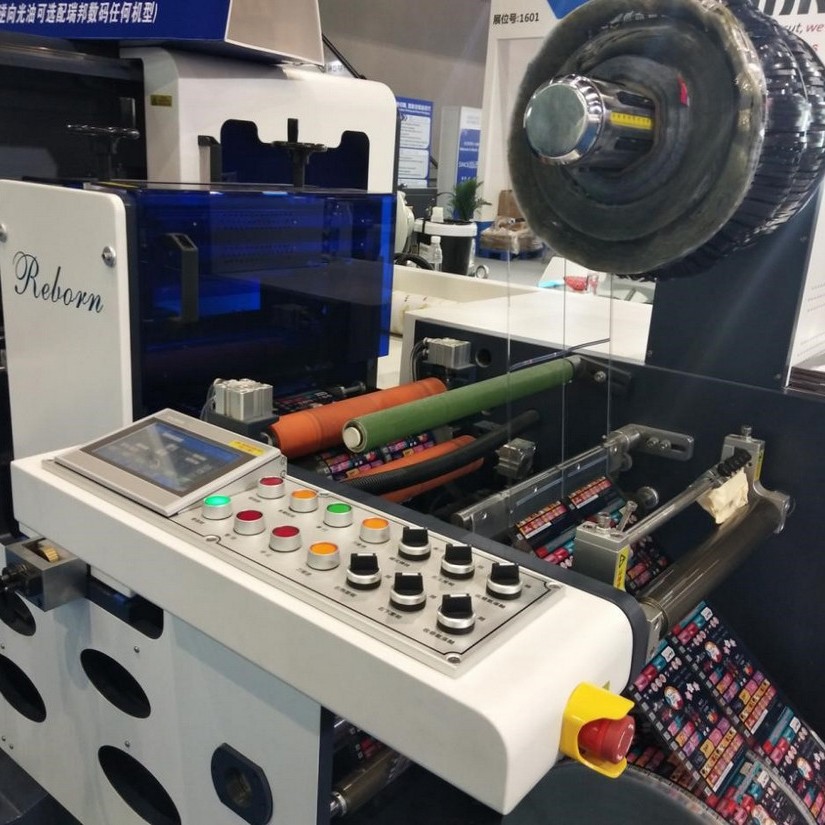

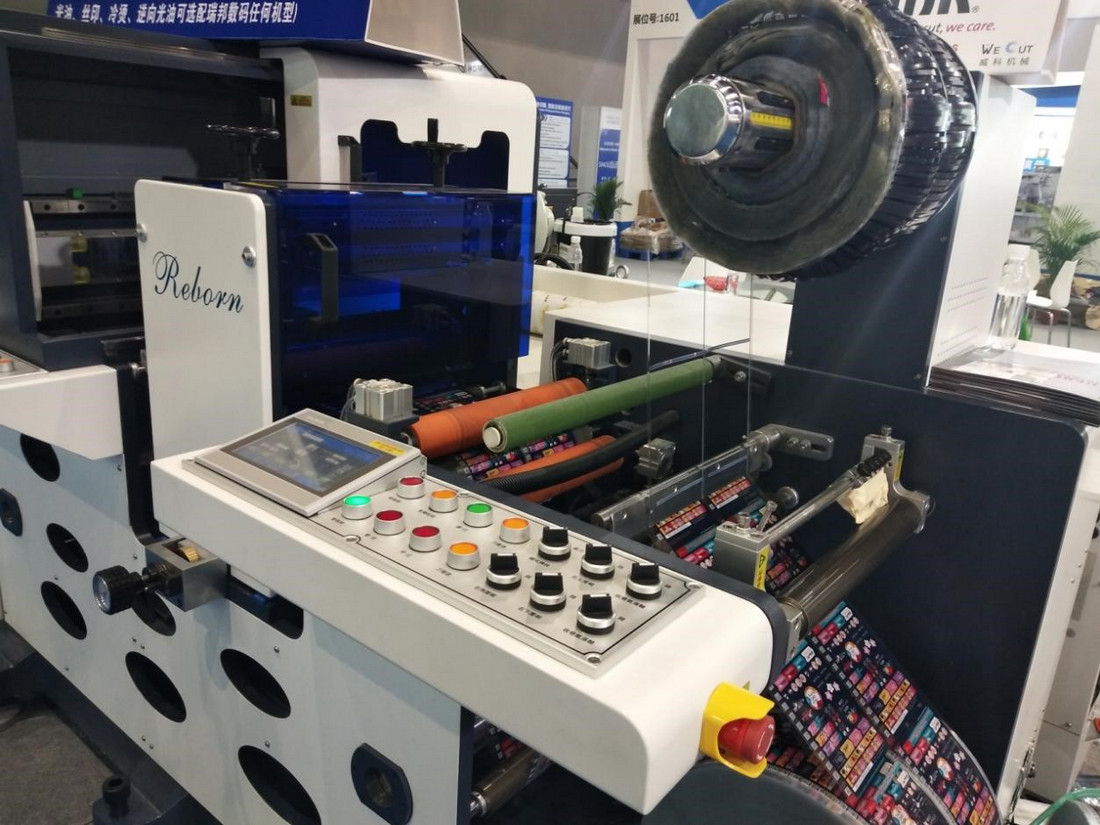

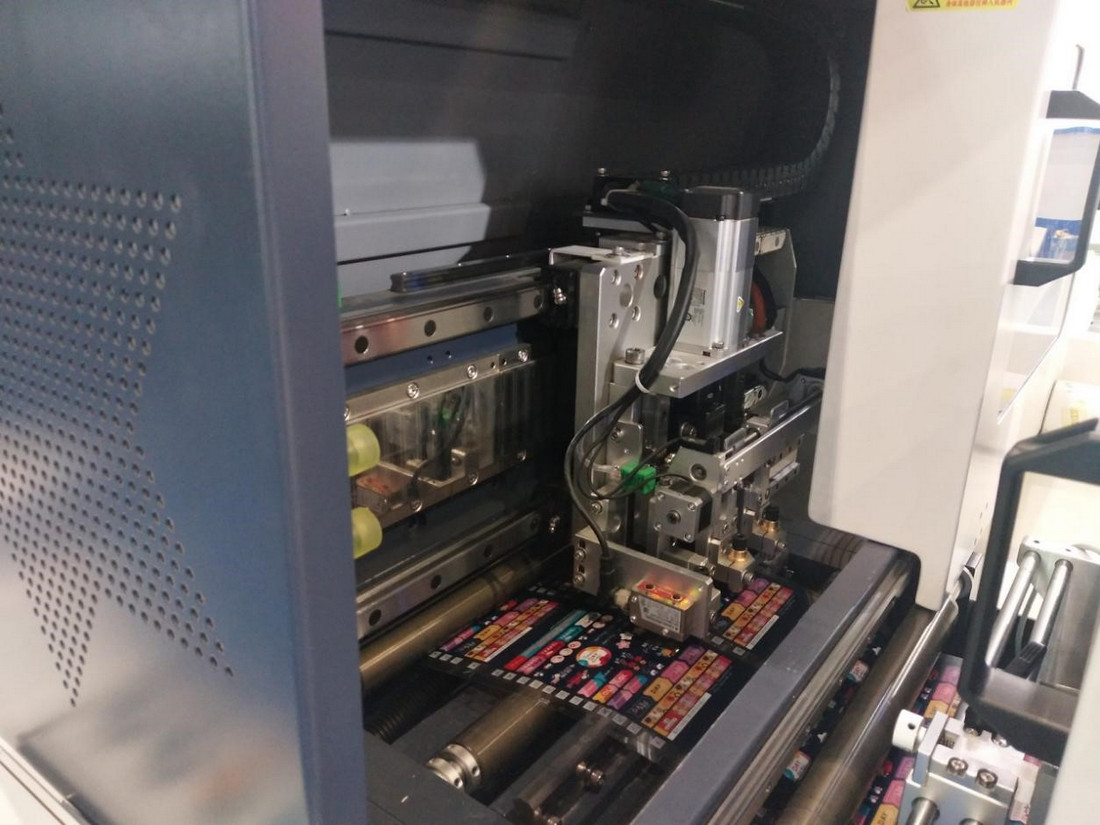

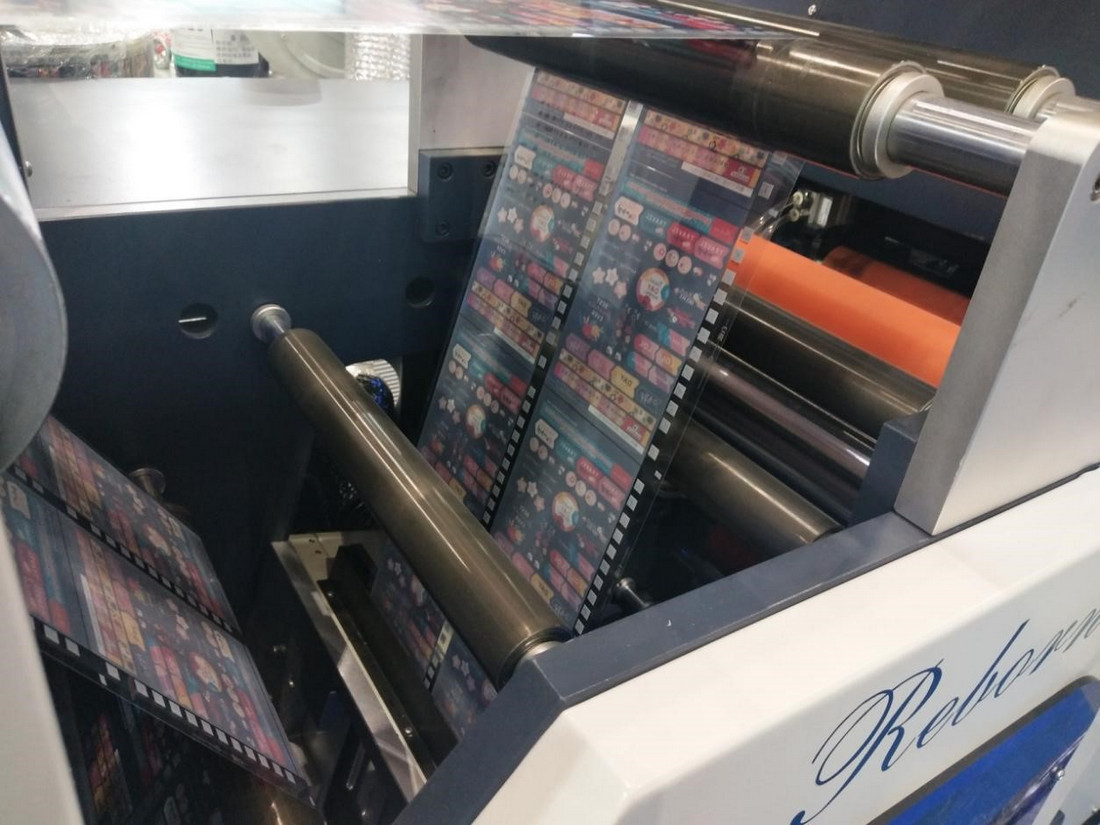

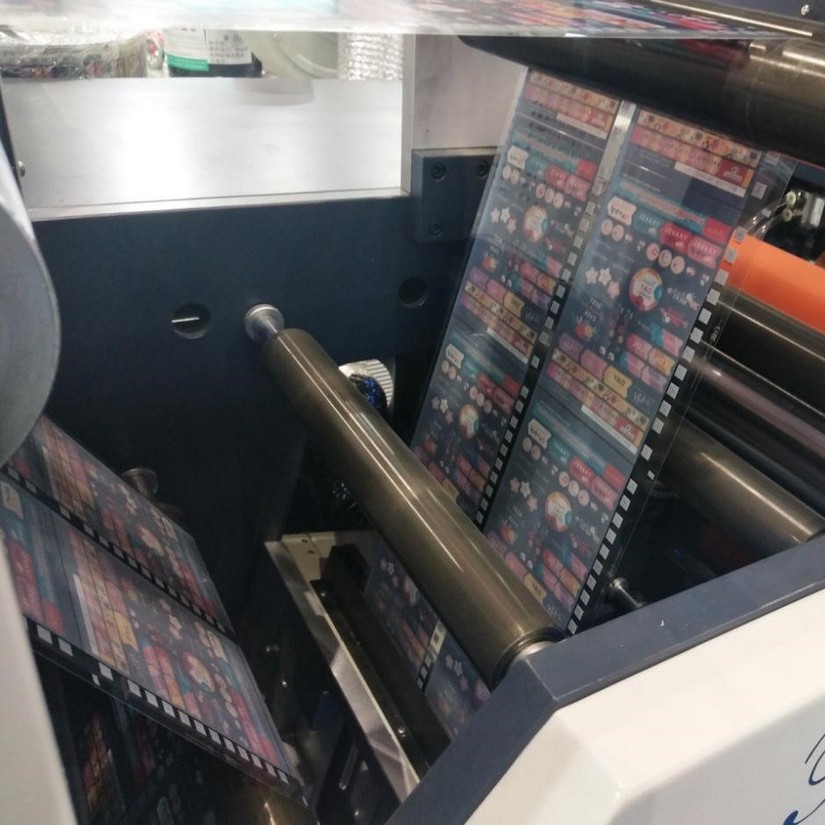

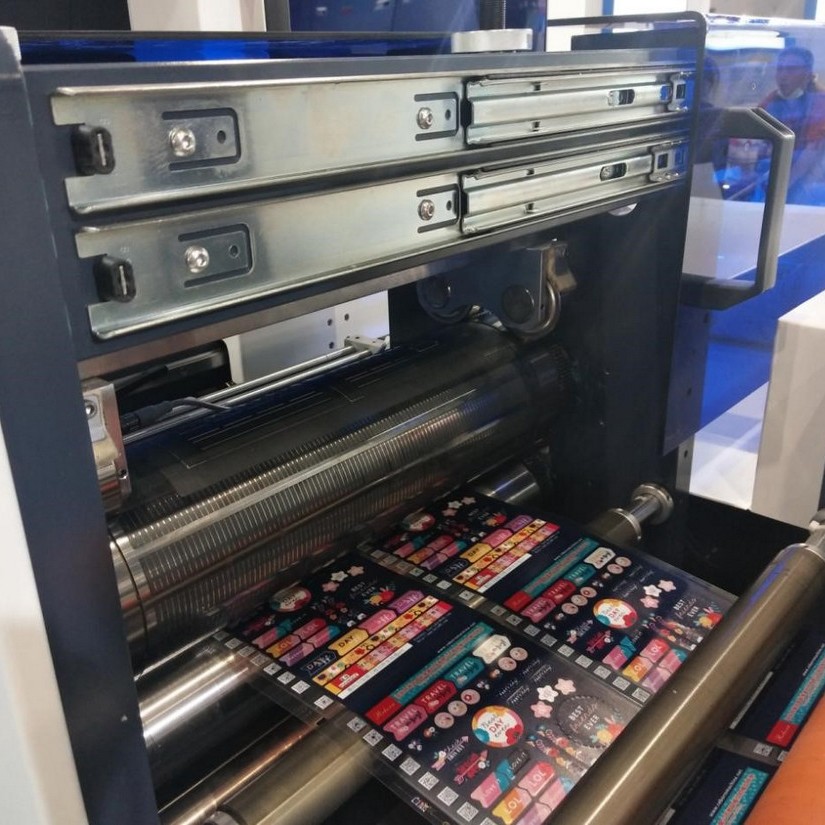

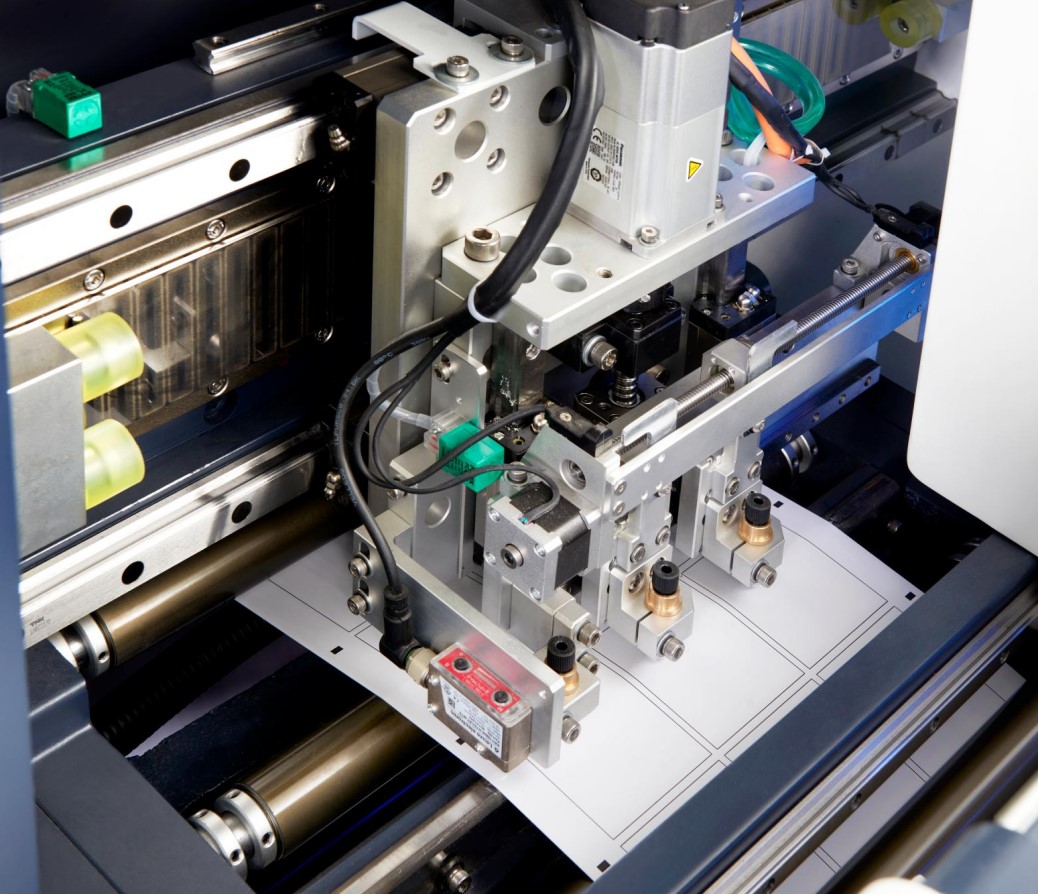

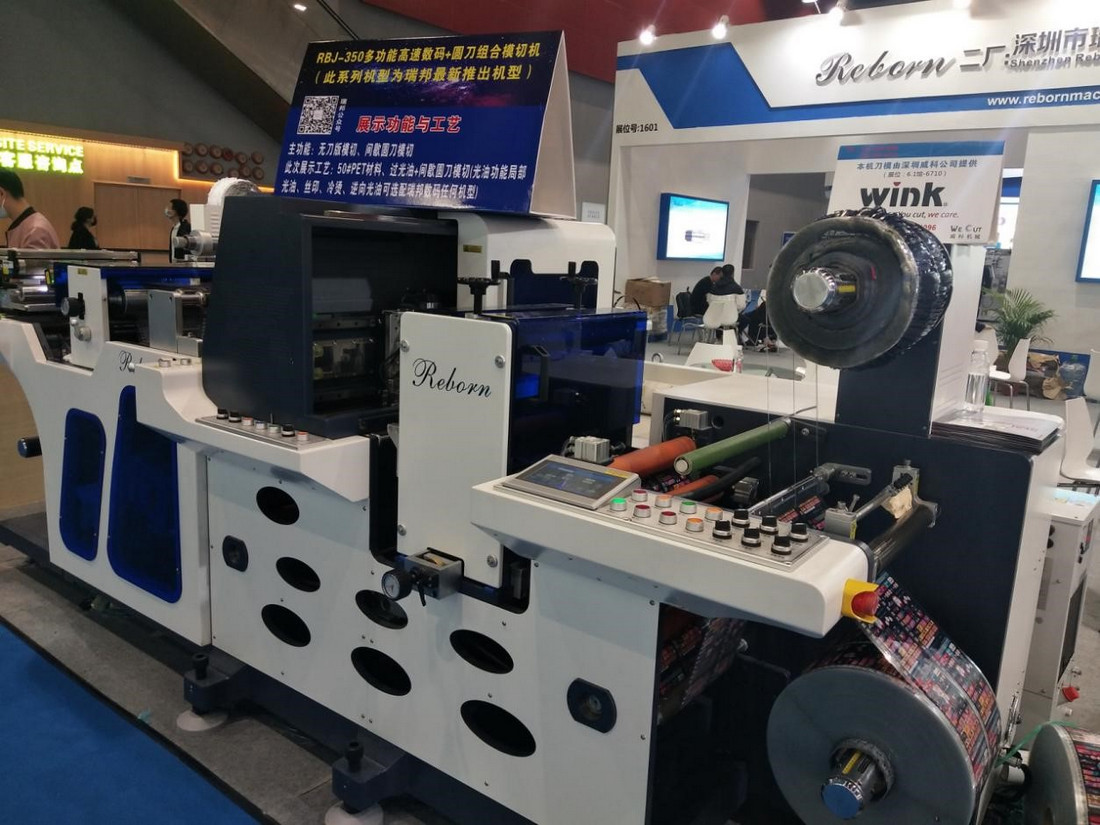

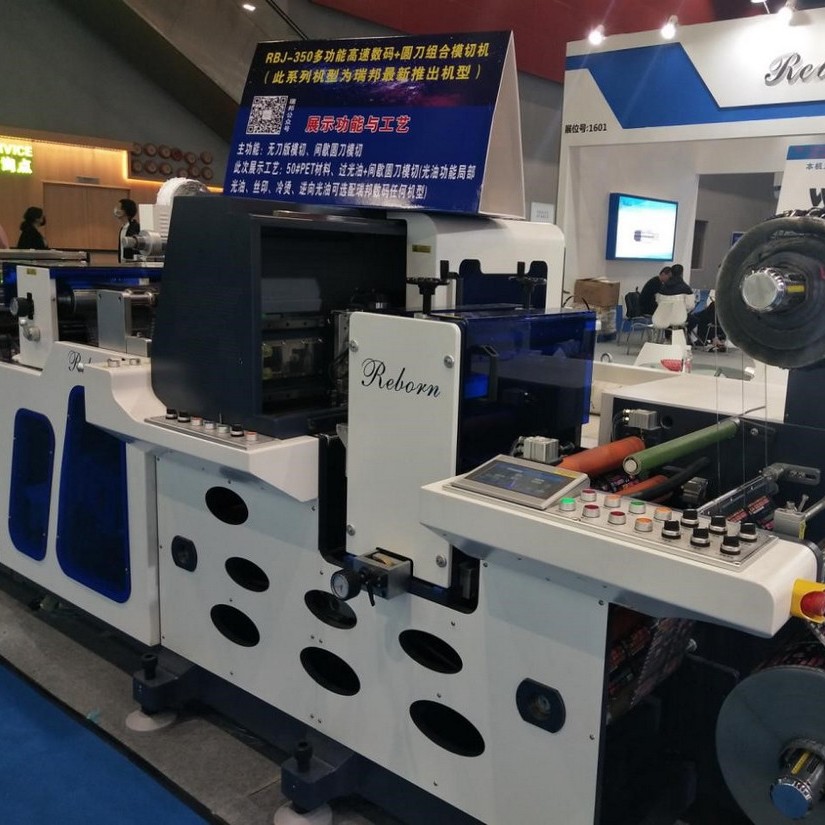

| Details of REBORN RBJ-350Star (3 IN 1 DIGITAL SYSTEM) | |
|---|---|
| Manufacturer |
|
| Features |

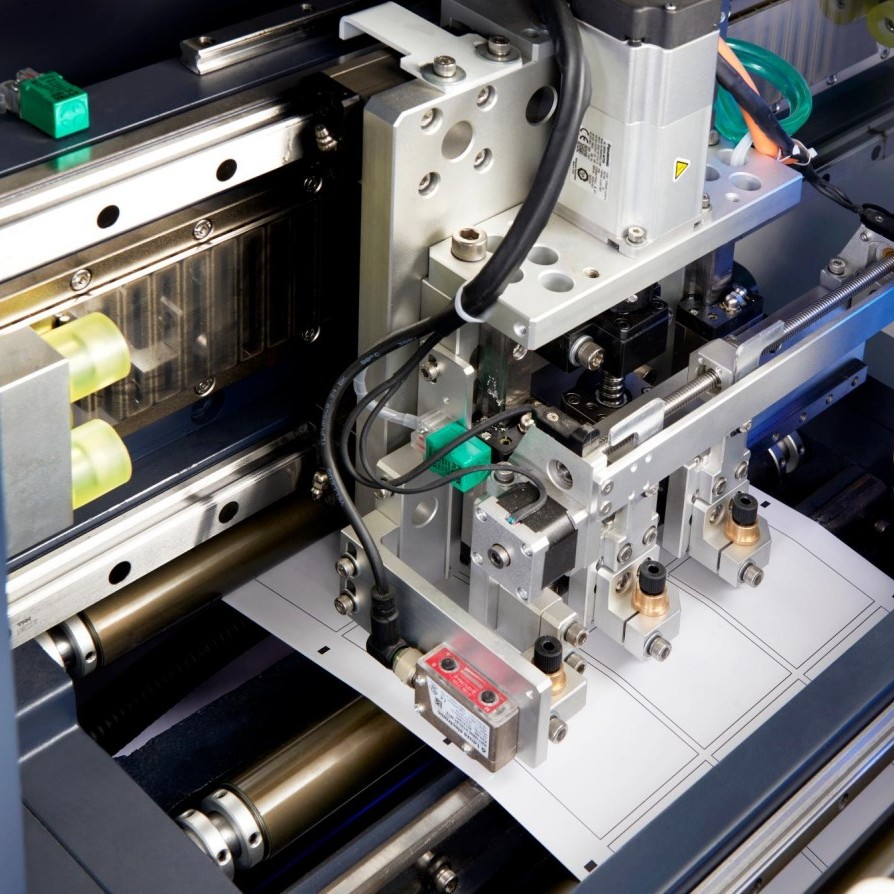

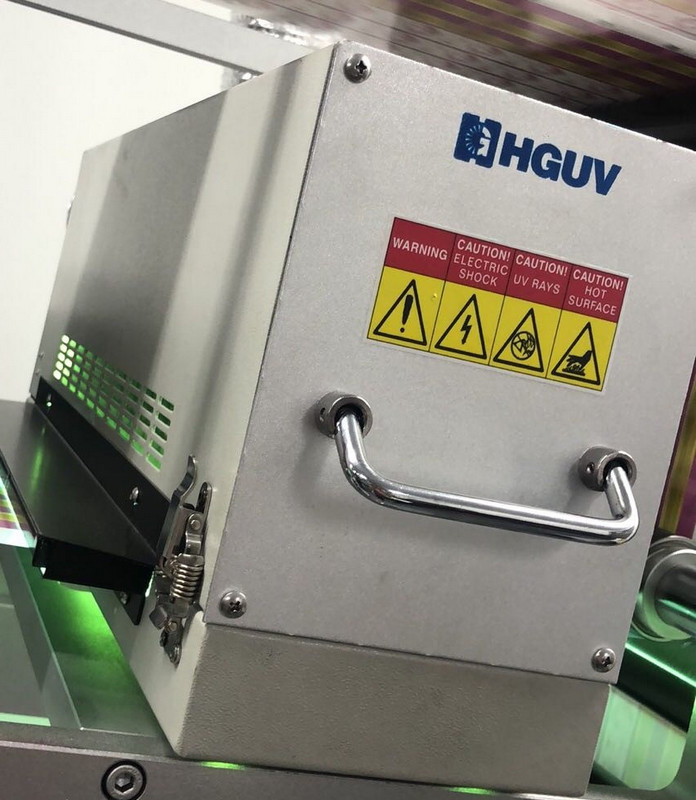

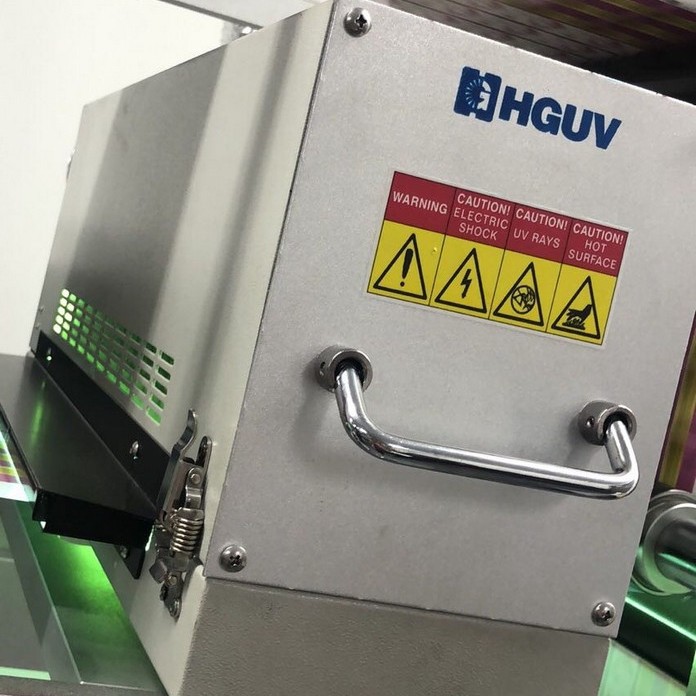

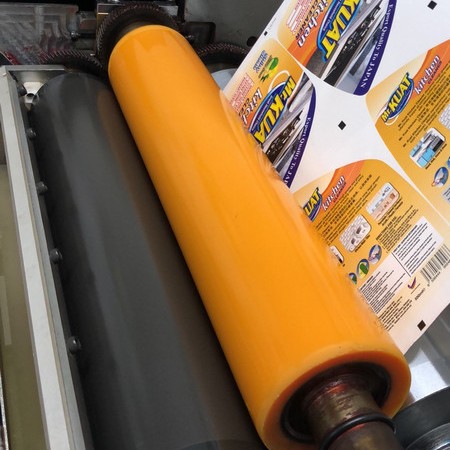

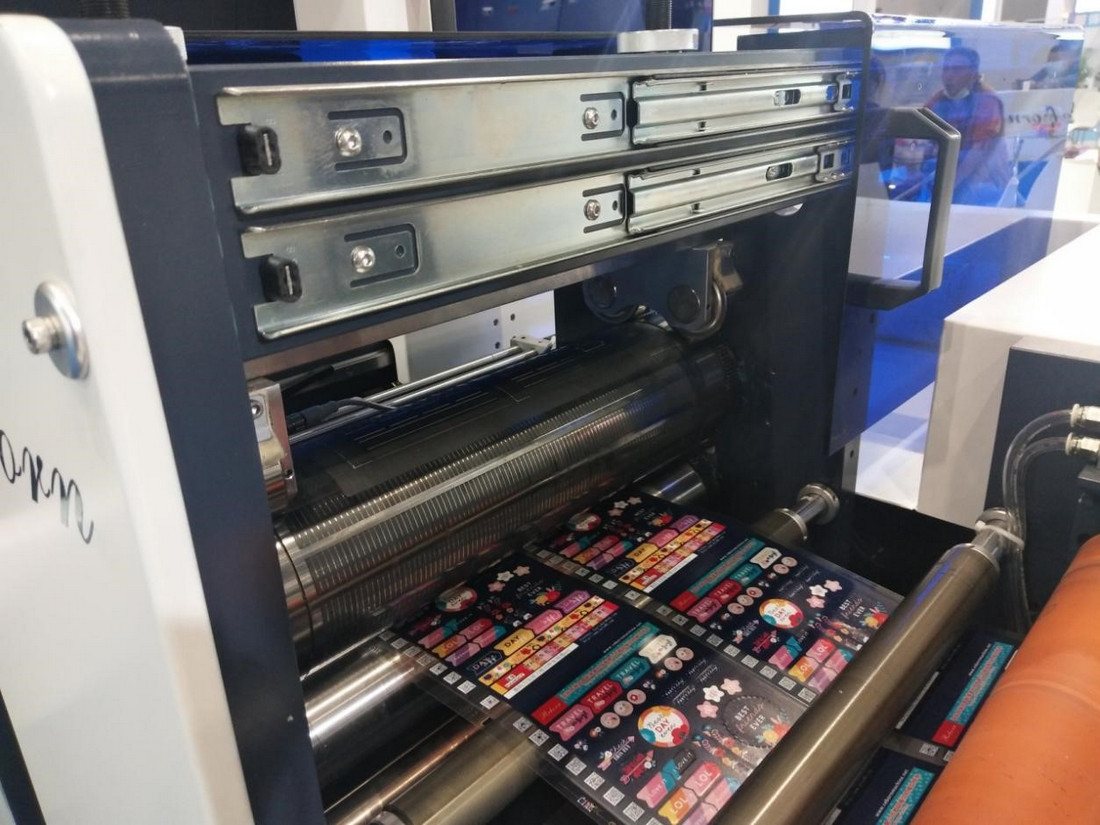

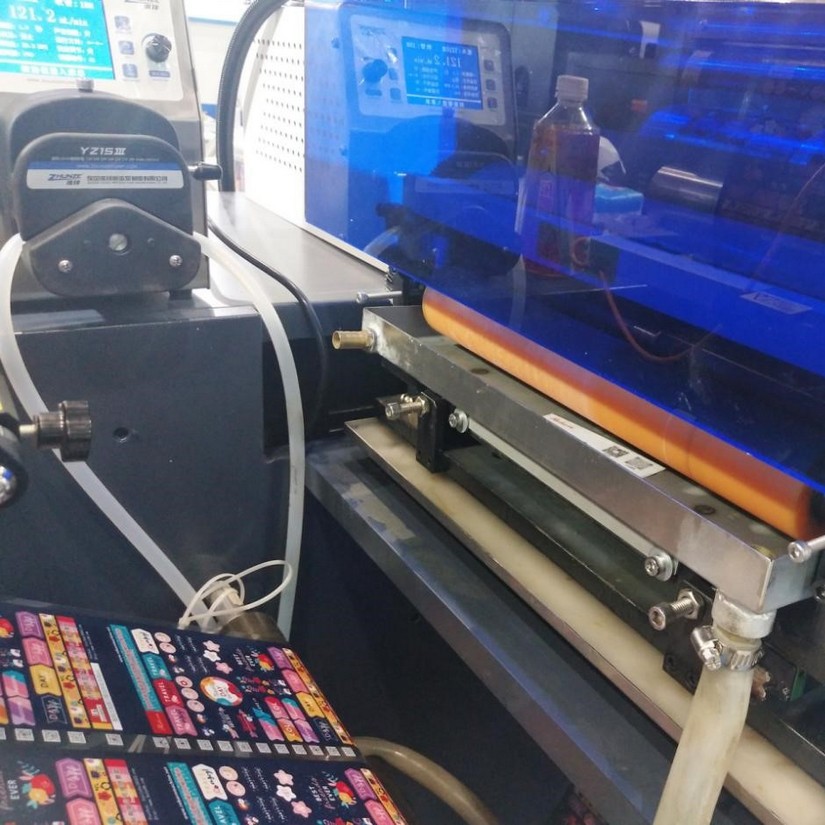

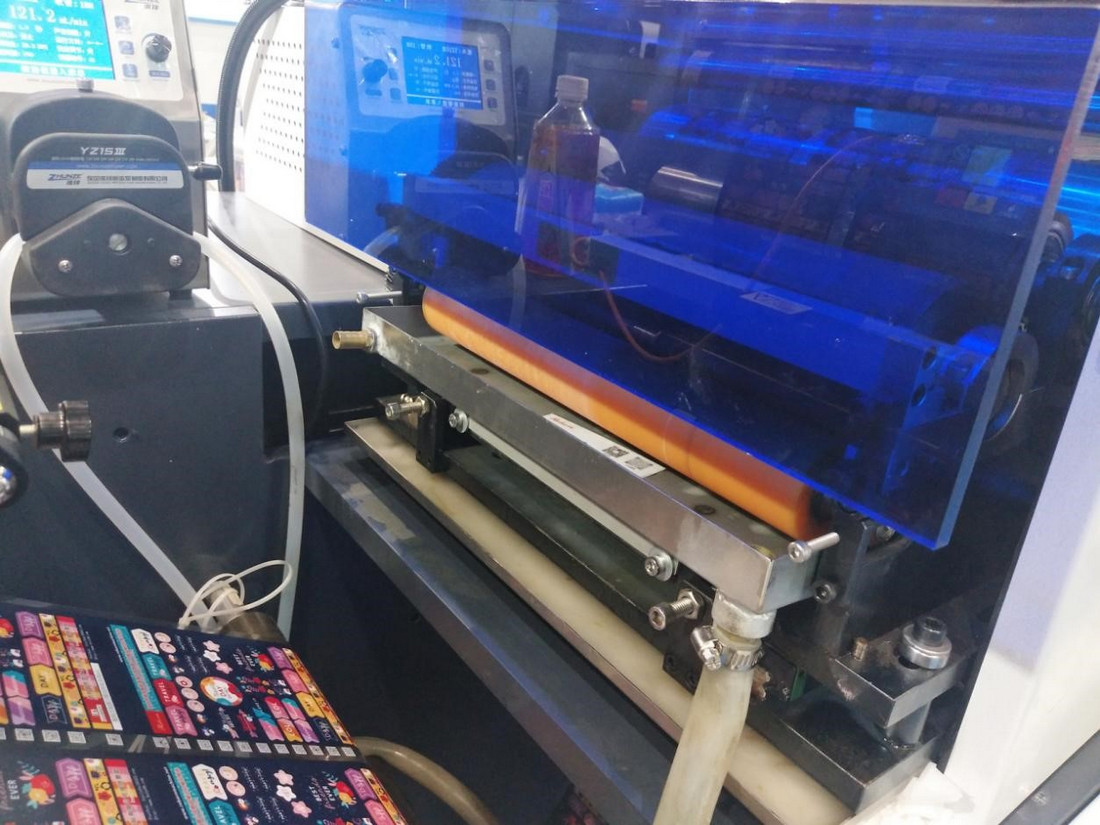

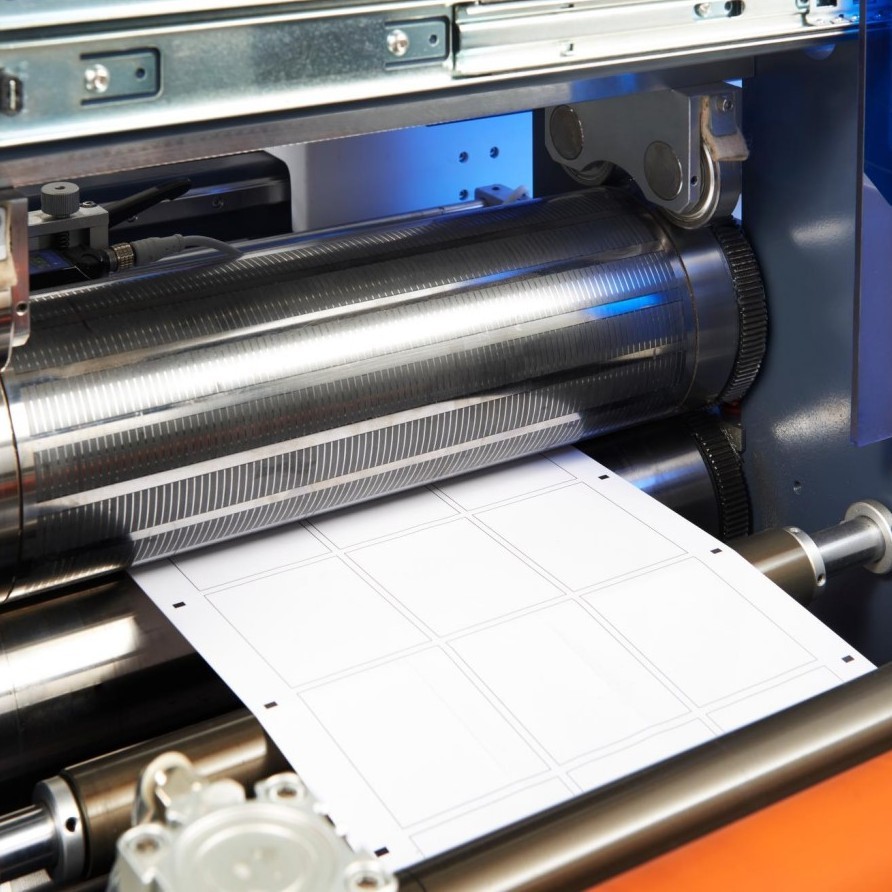

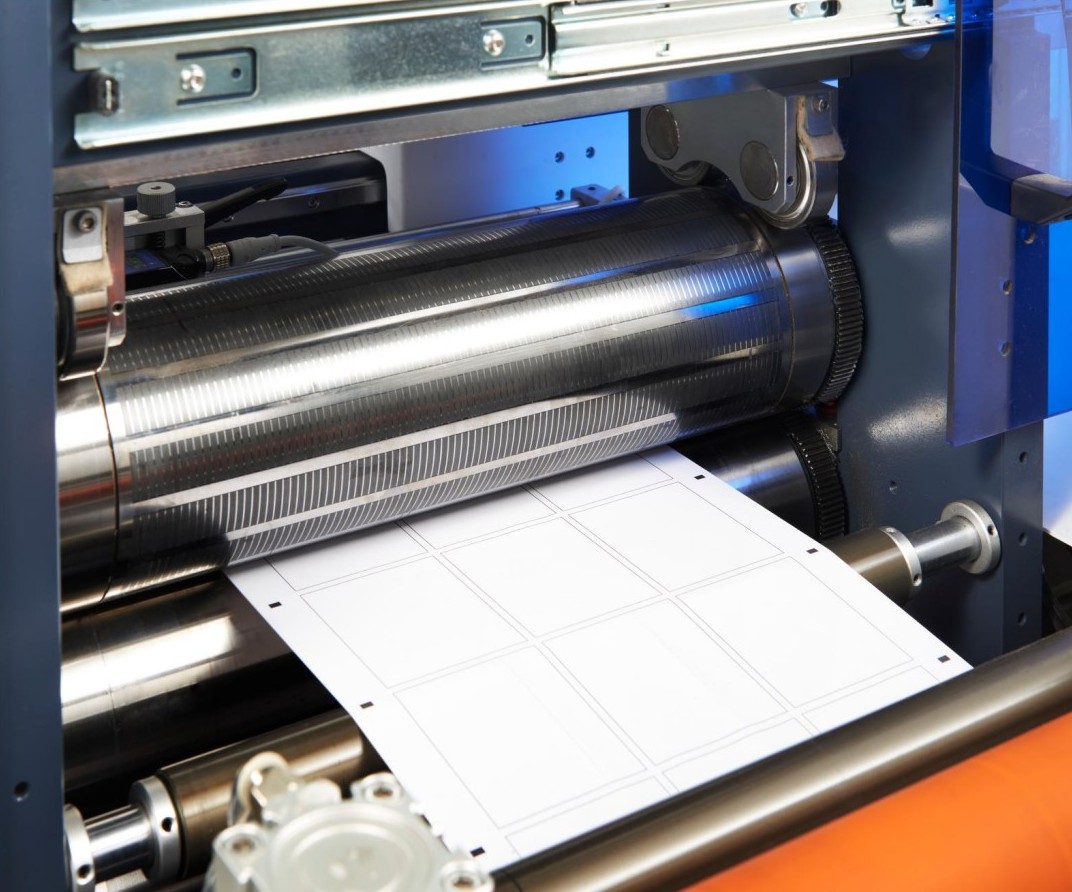

- Full varnish - Digital plotter - Semi rotary die cut - Greater product versatility - Sampling - Short run job - Medium to long run job - UV full varnish - Anilox roller(350l)-standard - Varnish rubber roller+gear set+doctor blade - UV lamp: 360mm |
| Model | RBJ-350Star |
| Country Of Origin | China |
| Max web width | 350mm |
| Unwind/Rewind Roll Diameter | 650mm(can load 2000 meters material) |
| Max. Repeat Length |
980mm for digital plotter unit 330mm for semi-rotary die cut unit |
| Digital plotter | 3 plotters |
| Max speed of varnish and semi-rotary die cut | 60 meters/min |
| Cylinder | 120T |
| Cutting Precision | +-0.1mm |
| Min gap of 3 blades/max gap of 2 blades/max gap of 3 blades | 65mm/160mm/105mm |
| Max unwind/rewind roll diameter | 600mm |
| Voltage | 380V/25.5A, (A.B.C+N+PE) |
| Rated current/Gross power | 11.5KW |
| Air Requirement | 0.6Mpa |
| Rated Current/Gross Power | 27A/12.5KW |
| Weight | 3500KG |
