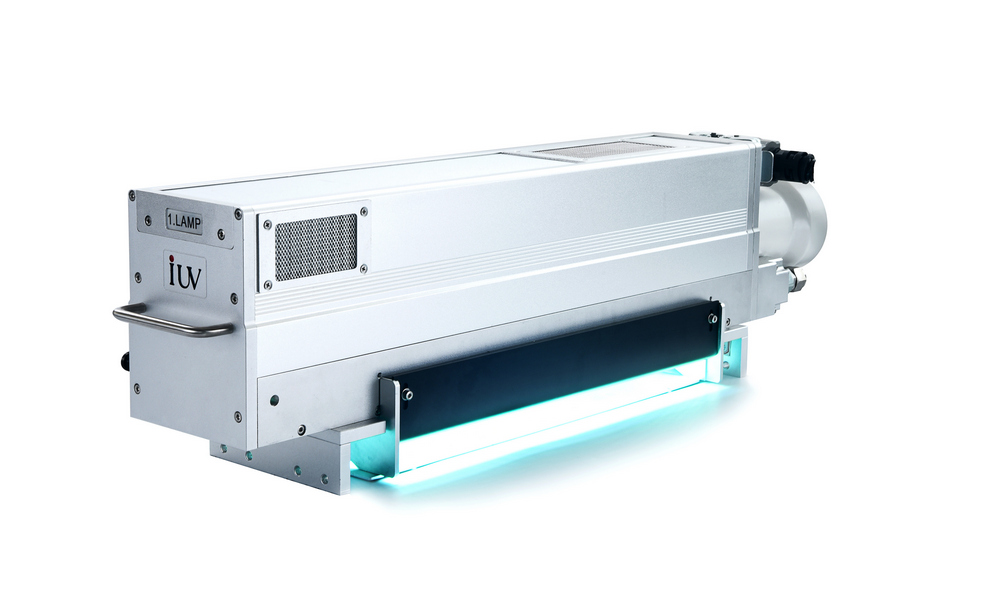

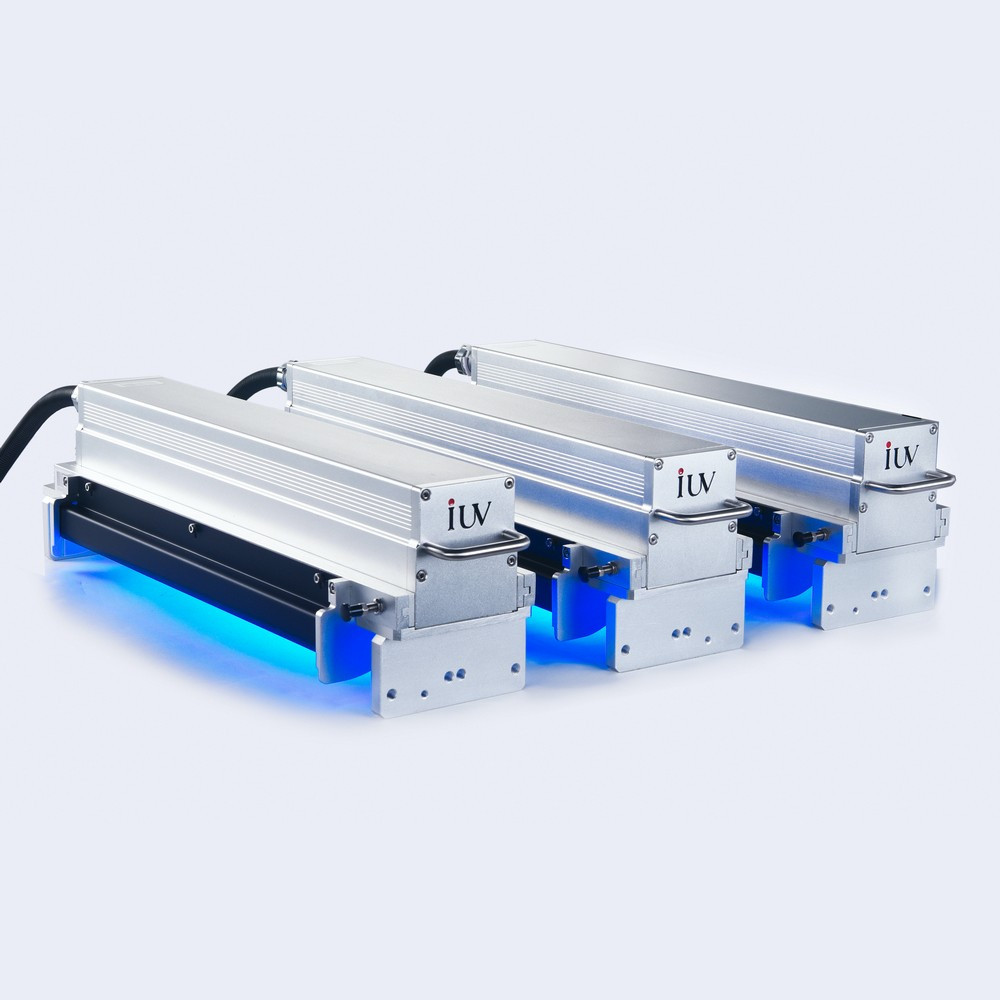

| Details of IUV LED / UV Curing System | ||
|---|---|---|
| Manufacturer |
|
|

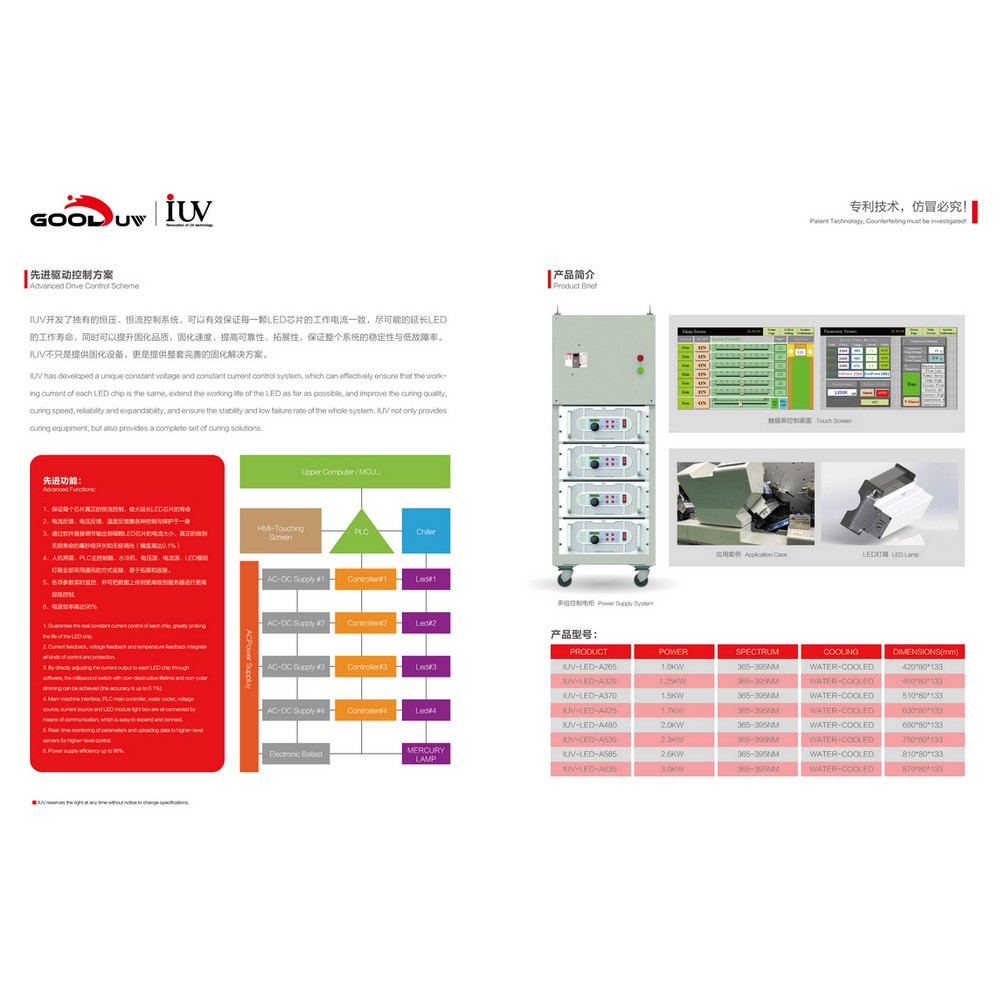

| Advanced Drive Control Scheme | IUV has developed a unique constant voltage and constant current control system, which can effectively ensure that the working current of each LED chip is the same, extend the working life of the LED as far as possible, and improve the curing quality, curing speed, reliability and expandability, and ensure the stability and low failure rate of the whole system. IUV not only provides curing equipment, but also provides a complete set of curing solutions. | |
| Advanced Functions |

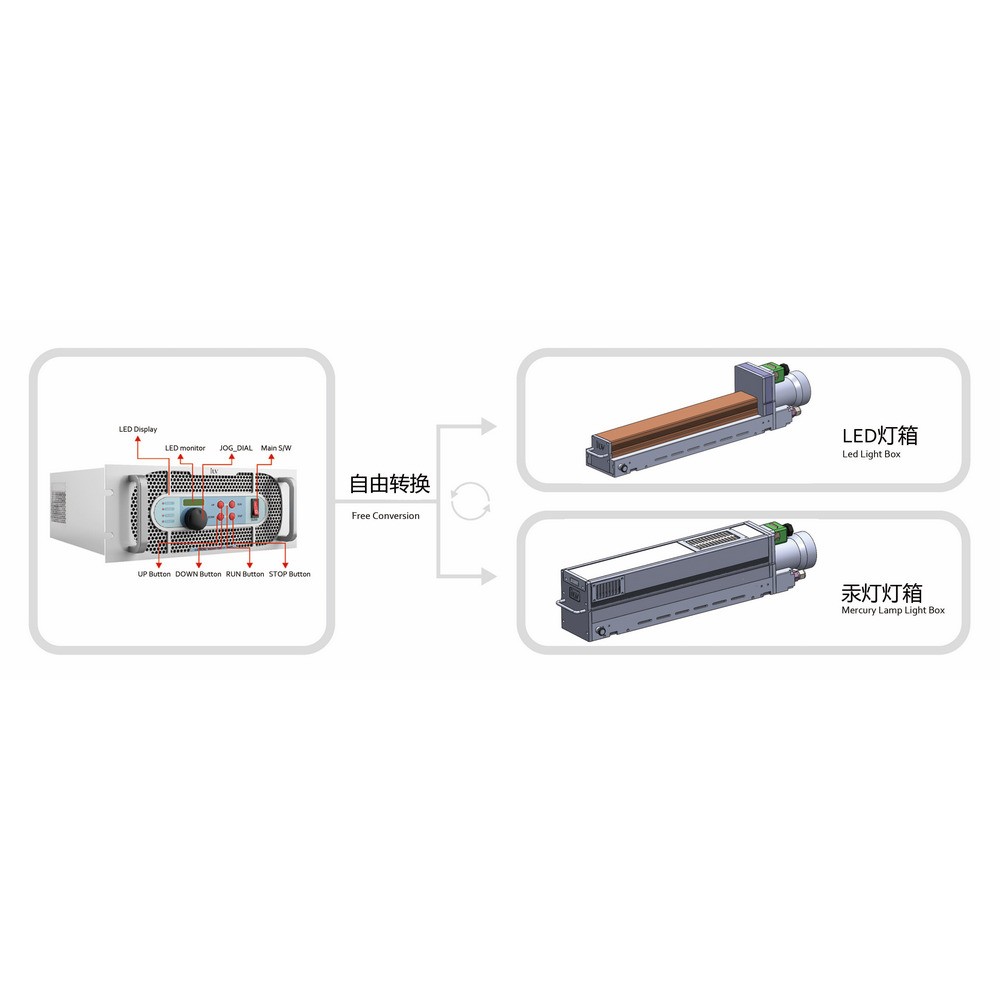

1. Guarantee the real constant current control of each chip, greatly prolong the life of the LED chip 2. Current feedback, voltage feedback and temperature feedback integrate all kinds of control and protection 3. By directly adjusting the current output to each LED chip through software, the millisecond switch with non-destructive lifetime and non-polar dimming can be achieved (the accuracy is up to 0.1%) 4. Man-machine interface, PLC main controller, water cooler, voltage source, current source and LED module light box are all connected by means of communication, which is easy to expand and connect 5. Real-time monitoring of parameters and uploading data to higher-level serves for higher-level control 6. Power supply efficiency up to 96%. |
|
| Specification | ||||
|---|---|---|---|---|
| Model | Power | Spectrum | Cooling | Dimensions(mm) |
| IUV-LED-A265 | 1.0KW | 365-395NM | Water-Cooled | 420*80*133 |
| IUV-LED-A265 | 1.25KW | 365-395NM | Water-Cooled | 460*80*133 |
| IUV-LED-A370 | 1.5KW | 365-395NM | Water-Cooled | 510*80*133 |
| IUV-LED-A425 | 1.7KW | 365-395NM | Water-Cooled | 630*80*133 |
| IUV-LED-A480 | 2.0KW | 365-395NM | Water-Cooled | 690*80*133 |
| IUV-LED-A530 | 2.3KW | 365-395NM | Water-Cooled | 750*80*133 |
| IUV-LED-A585 | 2.6KW | 365-395NM | Water-Cooled | 810*80*133 |
| IUV-LED-A635 | 3.0KW | 365-395NM | Water-Cooled | 870*80*133 |
