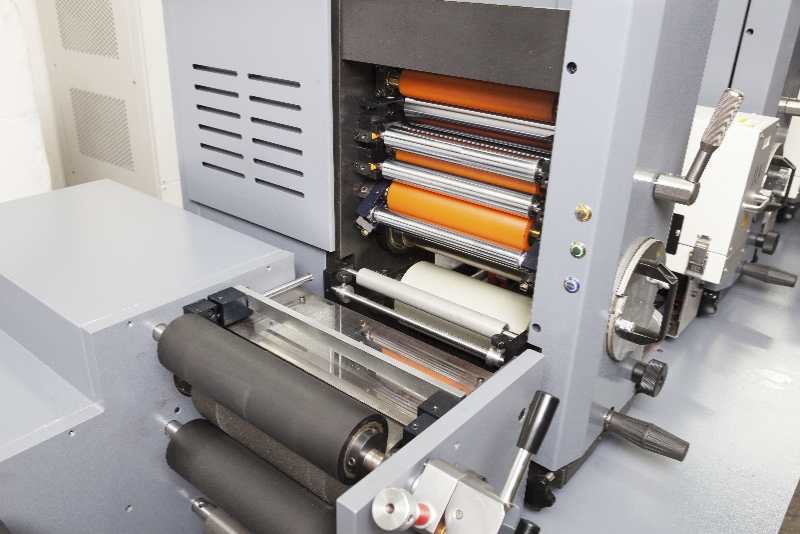

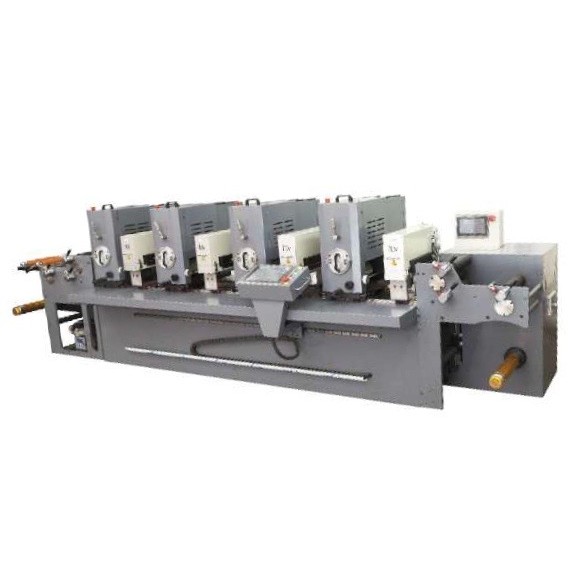

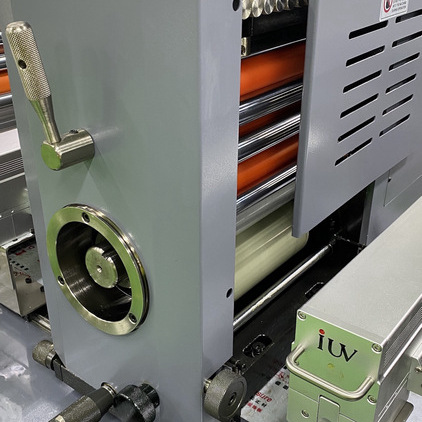

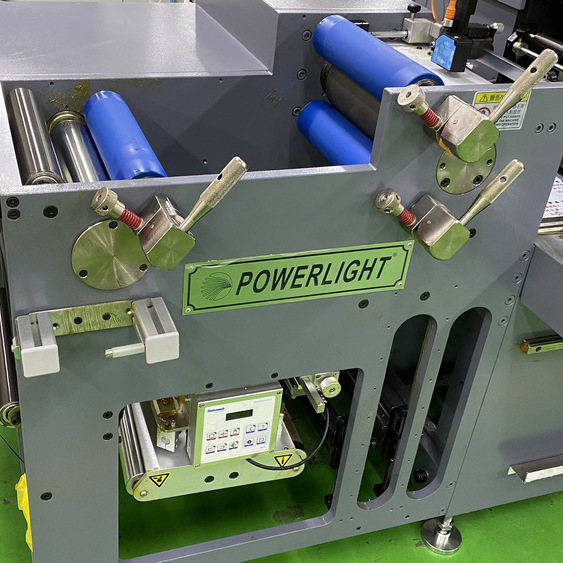

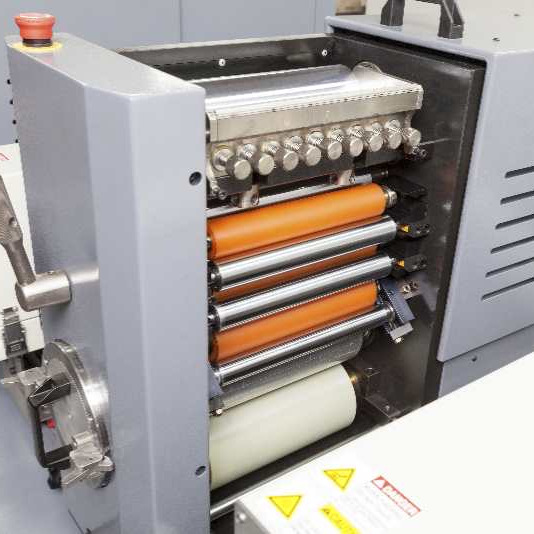

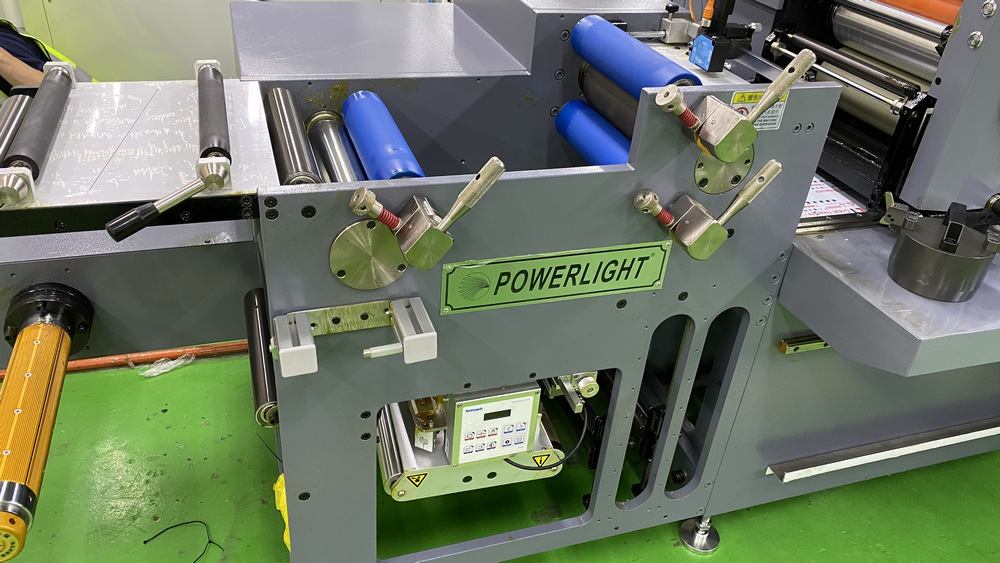

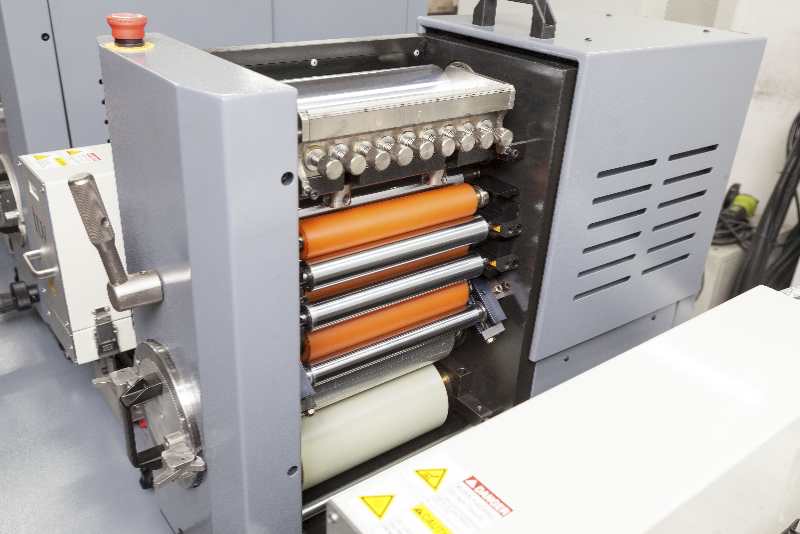

| Details of MINI PowerLight | |
|---|---|
| Manufacturer |
|
| Features |

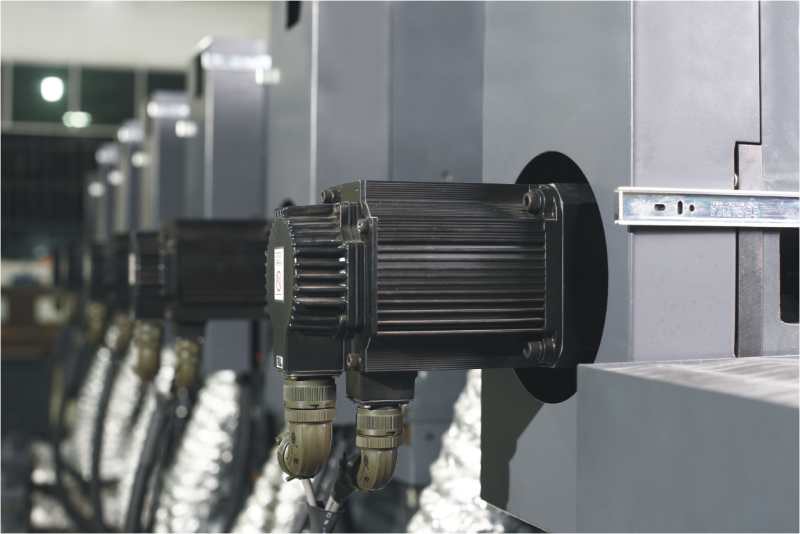

Printing Stations Are Controlled By Individual Servo Motor Pre-Rigistration System Suitable for Short Run and Long Run Job For Multi Colour Sticker Printing with UV Coating. |
| Model | XQ260E (Export Model) |
| Max. Paper Width | 260mm |
| Max. Printing Area |
250mm x 260mm (Intermittent Mode) 250mm x 326mm (Full Rotary Mode) |
| Min. Printing Area | 50mm x 30mm |
| Max. Speed | 250 r.p.m. |
| Max. Unwinding | Dia.700mm |
| Max. Rewinding | Dia.700mm |

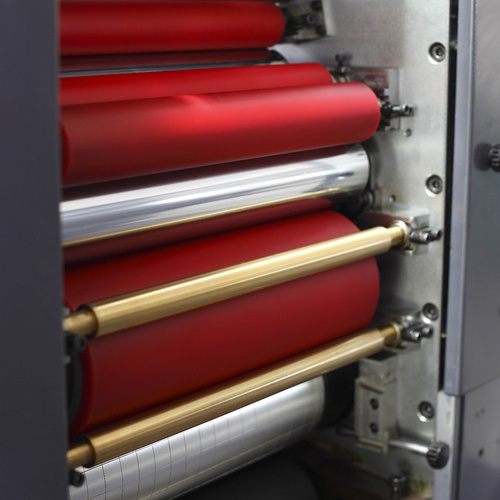

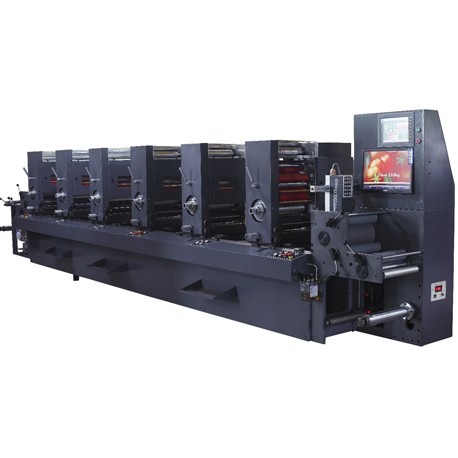

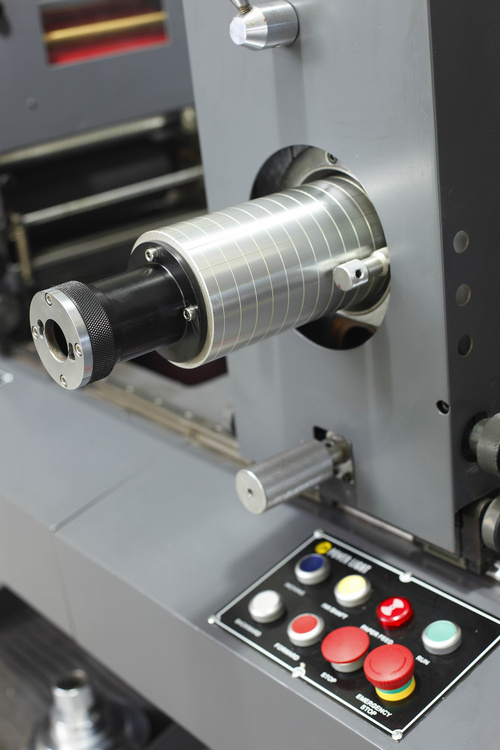

| Details of PowerLight PRO300E Series | |
|---|---|
| Manufacturer |
|
| Features |
Printing Stations Are Controlled By Individual Servo Motor Auto Position System Suitable for Short Run and Long Run Job For Multi Colour Sticker Printing with UV Coating Optional with Back Side or Glue Side Printing |
| Model | PRO300E (Export Model) |
| Max. Paper Width | 300mm |
| Max. Printing Area |
280mm x 280mm (Intermittent Mode) 280mm x 336mm (Full Rotary Mode) |
| Min. Printing Area | 50mm x 30mm |
| Max. Speed | 250 r.p.m. |
| Max. Unwinding | Dia.700mm |

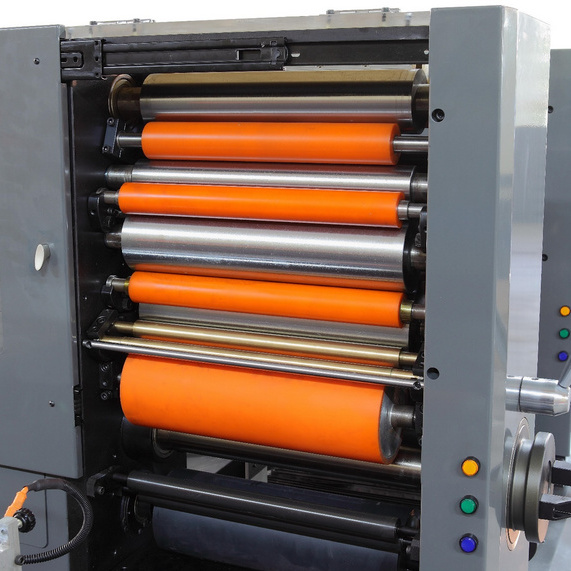

| Details of PowerLight PRO350E Series | |
|---|---|
| Manufacturer |
|
| Features |

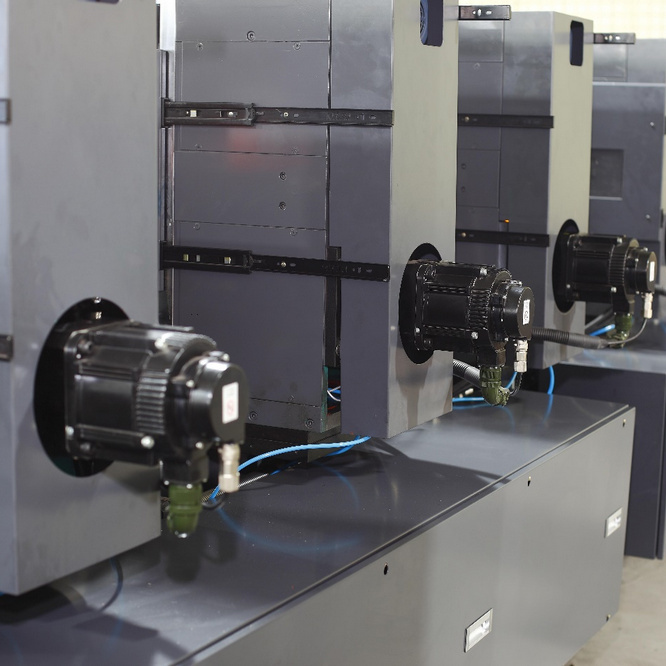

Printing Stations Are Controlled By Individual Servo Motor Auto Position System Suitable for Short Run and Long Run Job For Multi Colour Sticker Printing with UV Coating Optional with Back Side or Glue Side Printing, Corona Treater, Rotary Die Cut Unit |
| Model | PRO350E (Export Model) |
| Max. Paper Width | 350mm |
| Max. Printing Area |
330mm x 300mm (Intermittent Mode) 330mm x 336mm (Full Rotary Mode) |
| Min. Printing Area | 50mm x 30mm |
| Max. Speed | 250 r.p.m. |
| Max. Unwinding | Dia.700mm |
| Colours of Printing | 5 ~ 8 Colours |
| Machine Voltage | 220V, 3 Phase |
| Specifications |
1. Unwinding Unit with Powder Brake Tension Control.(Auto Tension) 2. Paper Web Guide System 3. Multi Colours Printing Unit 4. Curing System Each Unit 5. Dia. 107mm Print Cylinder 6. Moveable Touch Screen With Full Servo Control System 7. Online Rewinding Unit with Powder Clutch Tension Control 8. Scanner for 2nd Pass Printing |
| Optional Attachment |
1. Online Corona Treater 2. Glue Side Printing Unit 3. Back Side Printing Unit 4. Online Inspection Unit 5. Online Varnish Unit 6. Online Rotary Die Cut Unit |
